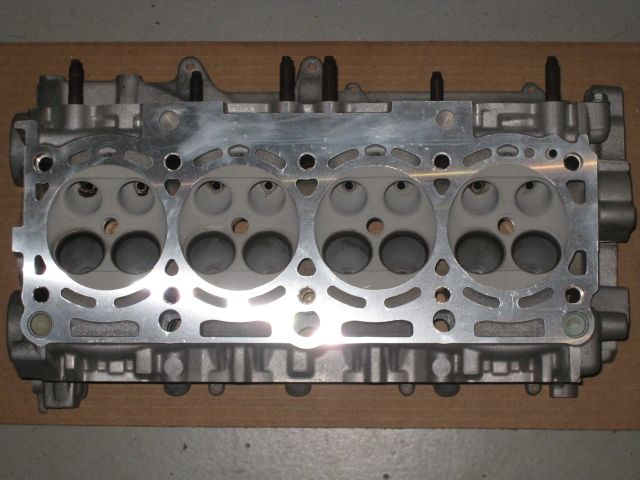

Racing Mind Posted August 23, 2012 Posted August 23, 2012 I've moved on from the MR2 world and am getting started with 7s. I planned to use this engine that I had built for my "2" but am going to go with something more plug and play. I'm limited on time and not as skilled at custom work as many of you. The tune is still very conservative, even being the highest hp N/A MR2 gen 3 motor out there. It would also make a tremendous turbo engine as well if someone chose to simply swap in lower compression pistons. All work has been professionally done by Chris Katthage at Enginelogics, so you know it is top quality. All invoices have been retained. I travel frequently for work, so please e-mail me if you have interest in discussing further. There is flexibility in the price; depending on what components you are looking for/your personal build intentions. This is a great opportunity for a top quality drivetrain at a value price. Titanium rods alone have more than doubled in price since the Boeing 787 went into production! I will also give you the map from my MoTeC m400 to help you get started with your own ECU. $10,500 OBO I'm also willing to entertain splitting the block and head if to bring the cost down but there will need to be buyers for both components lined up before a sale. Interestingly enough, a Tom’s engine is advertised for sale at $16,990 with less power! http://www.tomsracing.co.jp/product...g.php?mprID=285 Many thanks for your interest, Joe joeschroeter at gmail dot com Engine Specifications: Custom CP 13.5:1 88mm Pistons w/ 3-D Internal Mill, Lateral Gasports, etc. Swain Ceramic Coated: Combustion Chamber, Valve Faces, Intake and Exhaust Ports (TBC) Swain Piston Dome & Skirt Swain Ceramics (TBC & PC9, respectively) 3rd Generation "GE" Head w/ Race Porting by Chris Katthage at Enginelogics Custom Cam Sync Custom 304 Advertised Duration, 13.5mm lift Camshafts (257 @ .050” IN/ 257 @ .050” EX billet cams) Fidanza 6061 Aluminum Adjustable Cam Gears Ferrea Custom O.S. Stainless Valves, 36mm IN 30mm EX – Modeled after Blacktop BEAMS Custom 50mm Individual Throttle Bodies Custom Vacuum Reservoir Custom Fuel Rail System Subaru WRX 565cc, Metal Pintle Tip, (8) Hole Cap High Impendence Injectors Walbro 255LPH High Pressure Fuel Pump Caldina OEM (ST215) COP Ignition Alamo Autosports 6061 Distributor Cap Off OEM Shim Under Bucket Modification Custom Machine Work - Cut Exhaust Side Shim Buckets Custom Machine Work - Hand Cut Lifter Cut Outs to Accommodate Larger Cam Shafts Ferrera 85lb. Dual Valve Springs Ferrera Titanium Valve Spring Retainers Crower Custom Titanium Long-Rob Setup w/ rod ratio of ~1.7 Ishihara-Johnson Teflon-edged Crank Scraper Lightened, Chamfered, Balanced and Micro Polished 5S Crankshaft Custom Crank Trigger 93 OEM “5S” Treated Block Custom Lightened and Balanced Flywheel OEM Modified GenIII 4-2-1 Header, Swain White Lightning Coated OEM GenIII Cylinder Head w/ Swain Tech Chamber and Port Ceramic Coating Custom Exhaust, Swain Tech White Lightning Coated Speed Source Urethane Motor Mounts XRP Braided Stainless Hoses RacerX 6061 Alternator Mount OEM 70amp (lightweight) Alternator Thrust Washer 3S-GTE Main Bearing Set Main Bearing Set 0.025 over size Oil Pump Assembly Oil Pump Cover Gasket Rear Main Seal Cam Seal Tensioner Primary Idler Pulley Secondary Idler Pulley 5SFE Water Pump X-Line 3 Row Aluminum Radiator Custom Coolant Neck 0.8mm 3SGTE Head Gasket ARP Head Stud Kit (3S-GTE) Timing Belt for 3S-GTE Bore, hone, Align Bore and Deck 5S Block Custom Oil Filter Relocation Kit w/ Stainless Lines, Increased Capacity Custom Fuel Rail Aeromotive Fuel Pressure Regulator 8 bar pressure sensor w/adapter, Fuel and oil pressure 3-pin PSI transducer term kit Bosch engine temp sensor 1/8 NPT Bosch Sensor Term Kit Air temp sensor (Bosch) Air/Engine Temp / Lambda Sensor Term Kit (Bosch) Engine (water) temp sensor (Bosch) Engine Temp / Lambda Sensor Term Kit (Bosch) 1-bar map sensor (BARO) 1-Bar Pressure Sensor Term (GM) Kit (BARO) (100 KPA) 108 KPA BARO pressure sensor 1-Bar Pressure Sensor Term (GM) Kit (BARO) (108 KPA) LSU wide range lambda sensor 4.0 LSU Lambda term kit Most of the ancillary parts that were refreshed in the rebuild along with complementary machine work are not listed, for space purposes. This is a lot of data to sort through, so please let me know if anything is obviously missing.
Racing Mind Posted August 23, 2012 Author Posted August 23, 2012 The blue line is the un-ported head with stock exhaust valves. The red line is the custom exhaust valves in ported head. The orange line is the stock head with un-ported intake valve. The yellow line is the custom intake valves in ported head The red and yellow lines are measured over more lift areas because of the cams being used. Lift is measured in increments of 0.050” Test was done at 28 inches of vacuum Average airspeed is 345 ft/sec
westy turbo Posted August 23, 2012 Posted August 23, 2012 Lovely Jap engine for a 7 + its N/A,great job and hats off!!!
Racing Mind Posted August 23, 2012 Author Posted August 23, 2012 Lovely Jap engine for a 7 + its N/A,great job and hats off!!! Thanks! -Joe
