2005 Superlight Caterham, S3 Chassis with CSR260 Engine, SB100

[sltous]



Due to an upcoming family move to Europe, I am putting my Caterham up for sale.  As far as I know this is the only S3 chassis with the 260hp Cosworth engine from the CSR260 cars.  Whenever possible, I maintained the car with Caterham parts and bought extra parts to make ongoing maintenance easy. The Cosworth CSR260 engine is a great engine with good documentation from Cosworth and Caterham. California clean title in hand, SB100 smog exempt.  Asking price $48,000.



Located at Rocky Mountain Caterham in Golden, Colorado.  Please contact Josh at Rocky Mountain Caterham to view the car in person, either Josh or I can answer any questions about the car.  I've included some photos, you can see additional engine bay photos on the previous for sale ad on this site.  As the car is on site in Golden, Colorado I will do my best to pull from my setup notes and photos but Josh at Rocky Mountain Caterham will be the best contact for current photos.





Since purchasing this car, I have made no significant changes, only worked to continue to set this car up to be a reliable backroad car.  The torque from the 2.3L Duratec engine makes it easy to drive slow, and the 7700 RPM redline, rated 260 HP, and roller barrel throttle bodies makes it fun to drive fast.  I took it to Laguna Seca once and Sonoma Raceway twice.  I've owned the car since 2021, driving the car approximately 10,000 miles, for a total of 26,500 miles on the chassis.



Reliability Improvements:

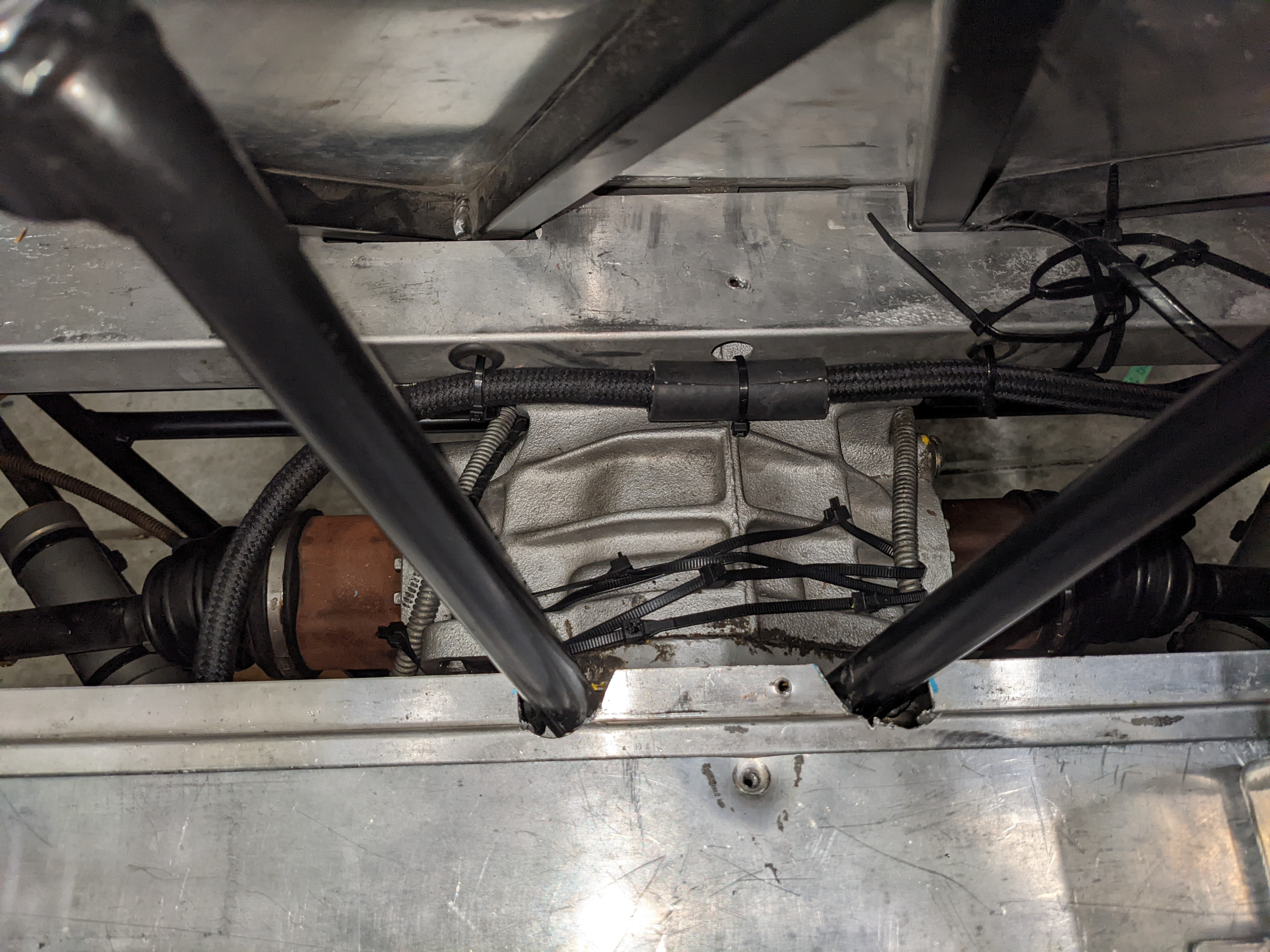

• Installed differential struts to help reduce torque steer
• Replaced a failed driveshaft universal joint.
• Switched to using a large Raceco muffler which required a small amount of fabrication as the Zetec - to - Duratec engine swap meant the exhaust system switched from the driver's to passenger's side.
• Fixed a few minor electrical issues from 20 years of exposure to the elements
  • A bit of headlight wiring
  • The fuel pump failed due to corrosion on one connector
  • The O2 sensor was incorrectly wired
• I have done Blackstone Labs tests on the engine oil and differential oil and they passed with flying colors.



Specs:

2005 S3 Chassis



Engine swap to CSR260 Cosworth engine, dry sump oil system

2x Unlocked MBE9A4 ECU from SBD Motorsports and USB cables

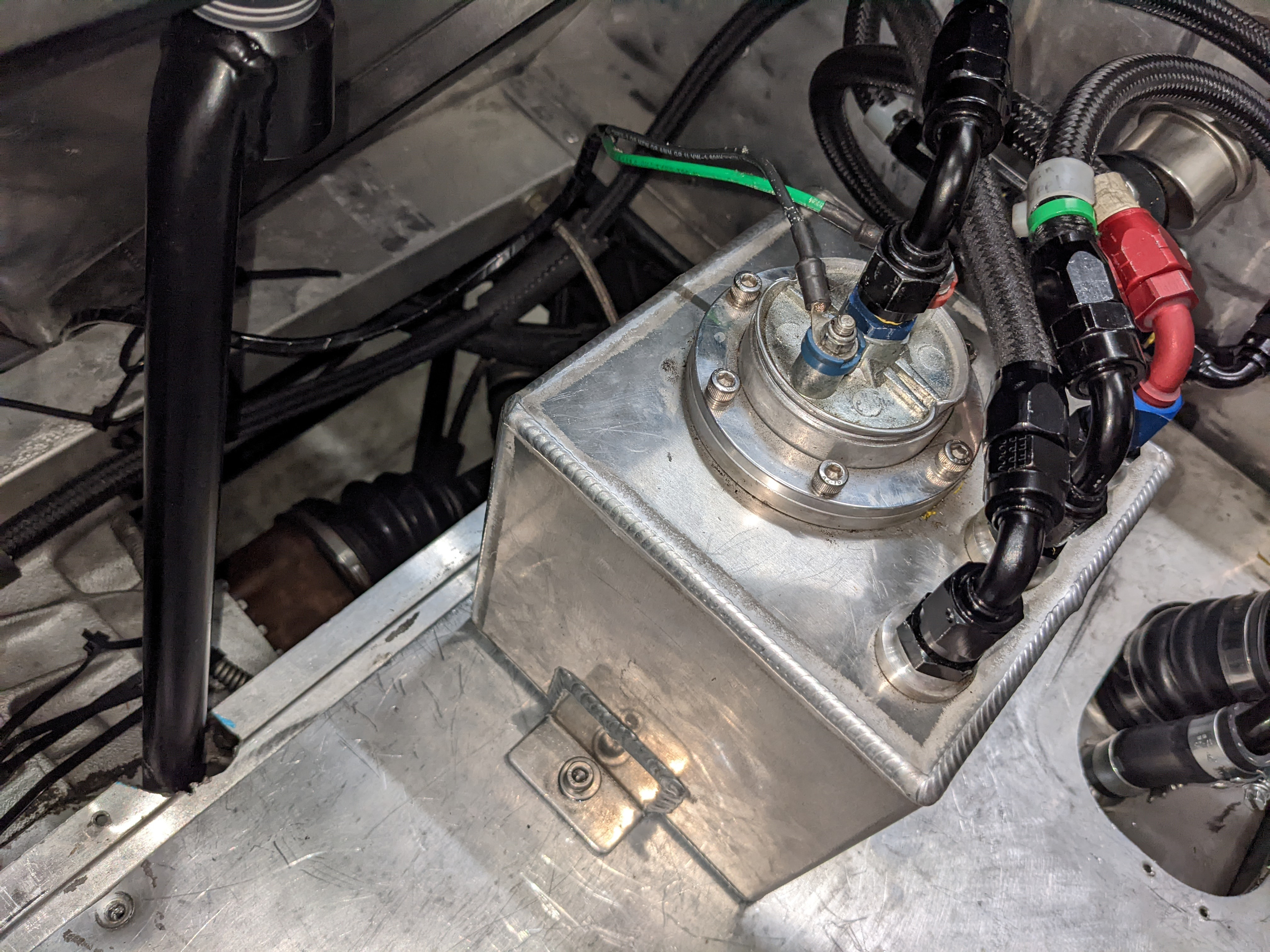

Secondary higher pressure fuel tank to feed the swapped engine, holds approximately 1 gallon fuel

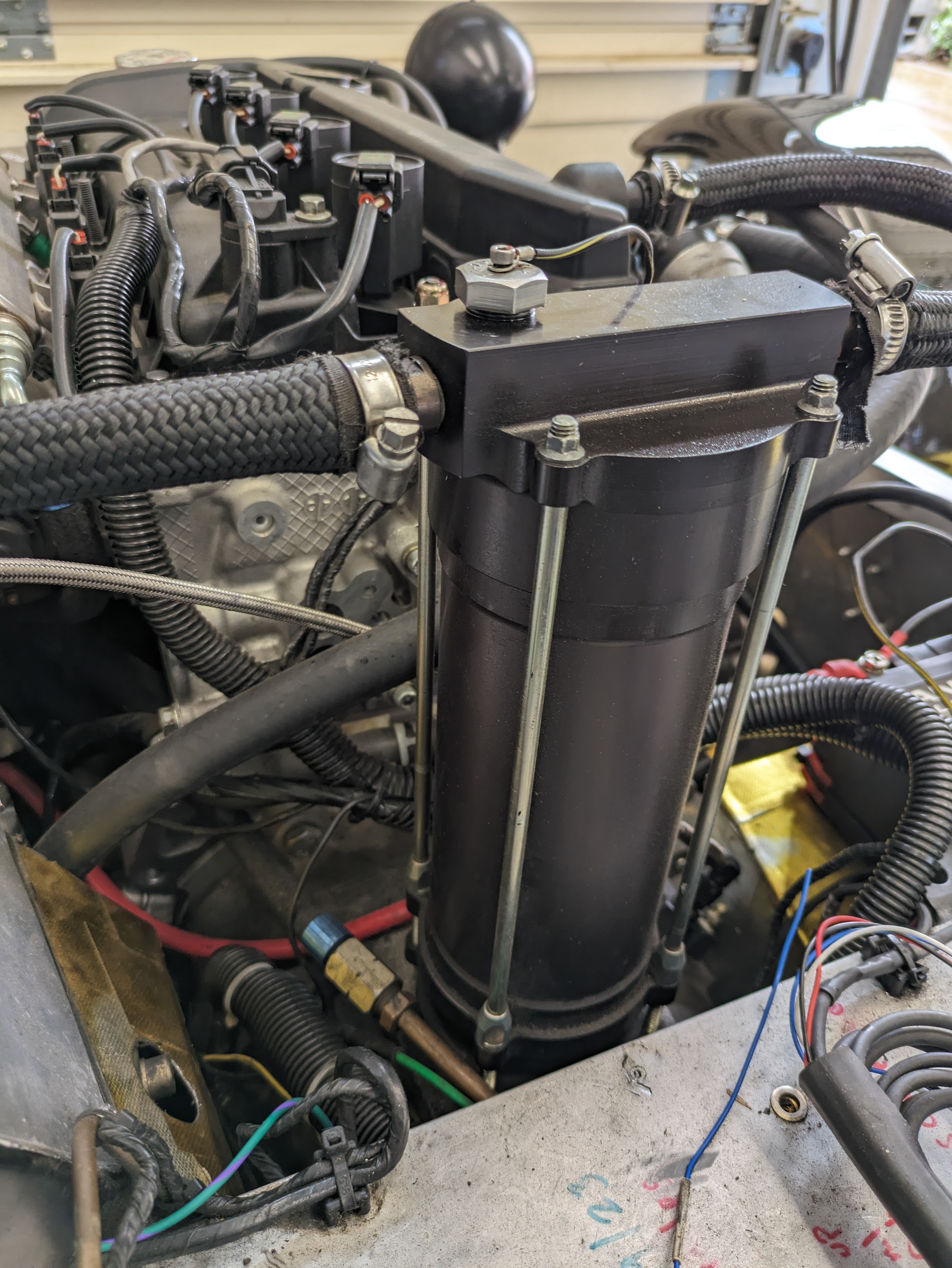

Inline fuel pressure regulator

Roller barrel throttle bodies

Titanium Raceco muffler

Radtec radiator and SPAL fans



6 speed Caterham transmission

Limited slip differential

Differential struts to support the higher power engine



Nitron 3 way adjustable with progressive springs, valved for Caterham 7’s from Simon at Meteor Motorsports

4 piston AP Racing upgraded brakes and vented discs on the front wheels

Standard solid disk brakes on the rear wheels

Soft brakes lines on the rear brakes

4x 13" Orcus wheels in dark grey and 4x 13" Apollo wheels in silver



Tillet fixed back bucket seats

Standard Caterham 5 point harnesses installed

Rapfix quick release steering wheel



Aero screen with CF mirrors

Windshield

FIA rollbar



AIM Evo5 datalogger with 37 pin connector

Homemade 22 pin aux connector for AIM Evo5

AIM Smartycam 2.1HD 84 degrees with external microphone



Tonneau Covers (Driver and Passenger)

Soft Bits for Sevens half doors

Removable scuttle (rivets drilled out and replaced with rivnuts) for easier dashboard work

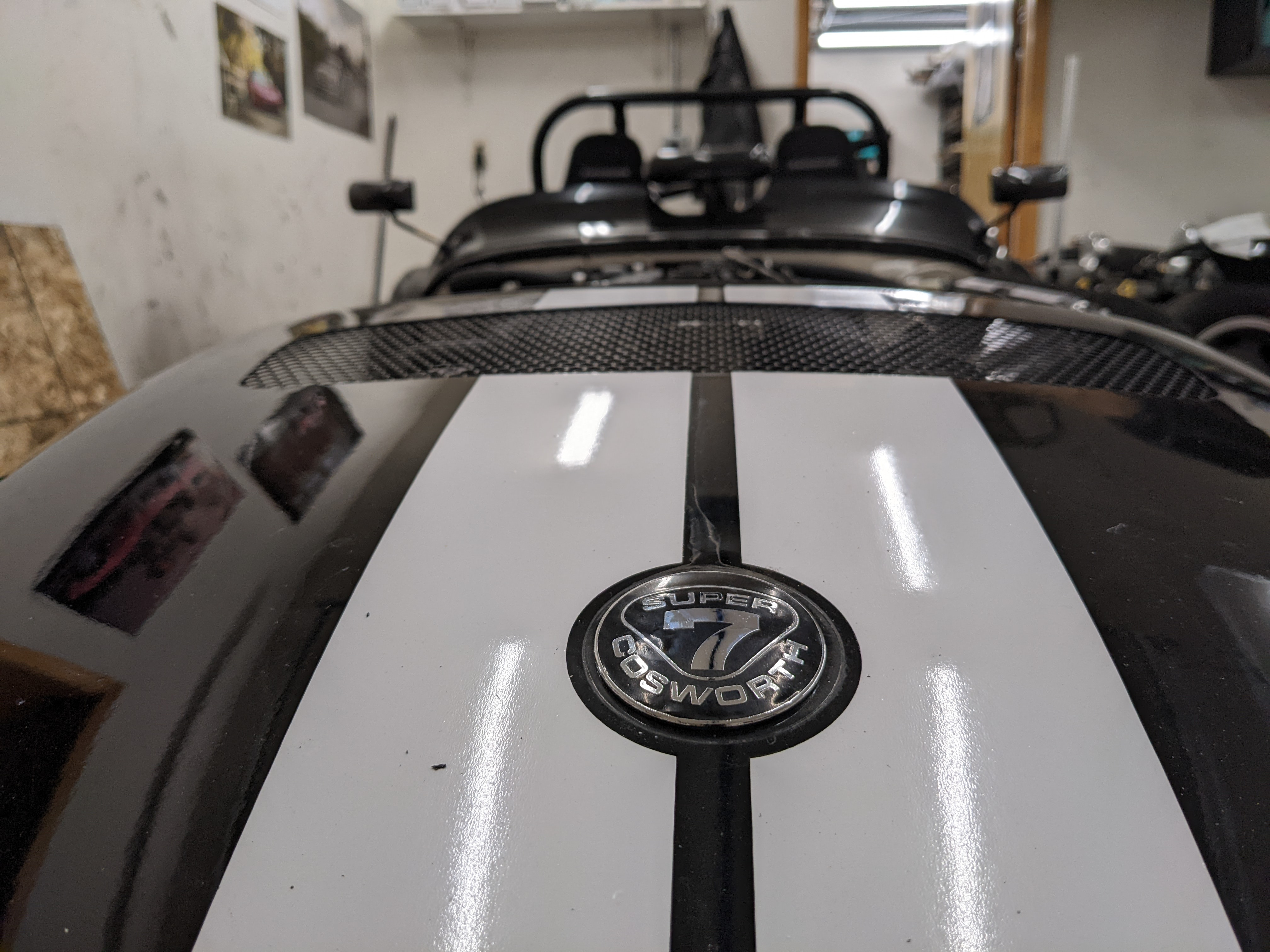

Lotus badge replaced with Cosworth Super 7 badge



Spares

New Sabelt 6 point harnesses ready to install

New seat lowering kit

New spare bare aluminum hood

Standard Caterham muffler

New Lifeline quick release and upper steering column





Edited 17 hours ago by sltous

[ocollin]

Hello,



Is it a lowered floor or regular?



Also, what us the asking price?

[sltous]

Asking price is $48,000, I'll update the post to include that.



Standard floors, although I have a set of new, yet to be installed lowered floors included in the price.
