Chris D

Complete 1500 cc Non Cross Flow engine from One of the Fastest Legal Vintage Lotus Sevens in the country. TURN KEY - Legal with all race groups and recently raced with SVRA, HSR, VRG, Lime Rock Festival and VSCCA with incredible race Win record. Complete NEW build in 2022 and freshened in 2024 with a new cylinder head, bearings, Rings etc. with only Dyno time and 4 races. All steel internals. Professional build. Build Sheets/Documentation/Receipts available for review with Dyno development results available for 2022/23/24. 2737 Block, steel crank, Carrilo rods, CP pistons/low friction Total Seal rings. Dry sump oiling system. Aluminum pan with Titan pump. Dry Sump 6 Qt tank and Aero lines included. Cog belt crank/water pump under drive pulleys. Adjustable cam gear with front cover modified for easy dyno adjustments. Head: new 2024 - with valves/Beehive springs light. wt. retainers – Ports/Valves/Cam flow box development results available. Roller Al Rocker arms with Alloy push rods set for proper Scrub. Weber DCOE 40’s with matched Aluminum intake. Alloy valve cover. Al flywheel- 10 pounds with 7 ¼” with Tilton clutch/pressure plate. MSD electronic ignition with MSD 6AL with rev Limiter and new MSD wires included. Al rear engine plate for conversion to Hewland/Spriget lightweight tranny available with Flywheel assembly and Tilton starter. Spares - New: Cometic MSX head gaskets, Intake and exhaust valves, Belts, Plugs, Miscellaneous gaskets... Sold the Race Car so Engine needs to GO. $13,000 / Best Offer Can bring to the Summit Point VRG event Nov 14/15 for review of dyno and build sheet specs. Thanks for looking. Call Chris D 585 330 5.456 cdmad4494@aol.com IMG_0789.HEIC IMG_0792.HEIC IMG_0790.HEIC

Craig knows a lot more about this than me but the basic answer is you’re cutting lots of material off the 1600 deck to get to the proper deck height/ rod piston height/ lengths to get it to work. you also decrease the support of the head gasket as you cut down into the block - the stock sand castings taper at the top to help give more surface area. Or you can can use the long deck block and go to a longer rod and order short deck pistons to help move the pin up the piston which is good for a longer piston dwell at TDC - higher cylinder pressures / BMEP - which is good. Other 1600 parts when need to be used> pushrods it’s a $$$$$ trade off

Mike I have most of the parts for a stock 1600 cross flow build or I can make you a snotty 1700 cross flow. Stock cast iron heads or modified/ ported dual spring in both iron or aluminum . Dual Weber carbs, manifold and air cleaner or stock GT. let me know what you need. can sell parts or build to your Specs. can deliver to the Lime Rock Festival next month if timing works out. Chris D 585 330 5456

Hello Chris from Rochester, NY. I've got one of the fastest Vintage race sevens in the country.... But Vintage racing is slowing down related to Old Guys actually racing...... I had a deal going with a Lotus NUT to convert this to street use. Unfortunately things fell through. https://www.facebook.com/marketplace/item/1321768079127537/?ref=search&referral_code=null&referral_story_type=post&tracking=browse_serp%3Ad6f59364-8c97-4f60-b629-4bb11b8ac2e4 I still have various Kent cross flow parts from my Mallock Cubman racing and could make a sweat /fresh "Sprint" cross flow to drop in based on your specs. Dual Webers/1700/ Aluminum or cast Iron ported and prepped dual spring heads. Literally just add lights and softer brake pads for the street. Even have the original stock seats. Willing to build any package to help sell this. - Moving and out of racing. It needs to go. I'm an established (retired) race/restoration/prep shop and build of help build to your specs. Will consider selling as a roller. Chris 585 330 5456 cdmad449@aol.com

Can build Up or Down based on your needs - Have a nice Sprint 1700 motor and stock tranny that could be swapped for a $ reduction. Chris 585 330 5456 https://www.facebook.com/marketplace/item/536679232084294/?ref=search&referral_code=null&referral_story_type=post&tracking=browse_serp%3A05d84400-0181-444e-97da-cdfa9e252971

Tranny is Sold - Thanks for looking - Chris D

Selling for a buddy. Ford Sierra T9 5 Speed tranny. 23 tooth input spline. 3.0/1 first Synchros Look Very Good. Bolts up to a typical Ford 3 rail bolt 4 pattern bell housing. Incorrect shifter installed to run through the gears - easily obtain. Can ship or meet at a NE track during a Vintage race. $800/BO Chris D 585 330 5456 cdmad4494@aol.com

Make Me An Offer I can't Refuse !!! Legal with all race groups and recently raced with SVRA, HSR, VRG, Lime Rock Festival and VSCCA with incredible race Win record. Make Me An Offer I can't Refuse !!! Serial number SB1125 with log books from the early 1980’s. Complete Rebuild 2022 with updated cage, chassis, fuel system, brakes. Fresh LEGAL 1500 non Cross Flow. All steel internals with Fresh Super Close ratio trans. Minimum weight at 1025 pounds. Professional build. Includes: Engine: Original build 2022 with 10 events. Dyno development results available for 2022/23/24. 2737 Block, steel crank, Carrilo rods, CP pistons/low friction Total Seal rings. Dry sump oiling system. Head: new 2024 - valves/Beehive springs light. wt. retainers – flow box development results available. Weber DCOE 40’s with match lowed Al intake, Uni filters. Al flywheel with 7 ¼” Ap clutch/pressure plate and hydraulic throw out bearing. Ceramic coated progressive tube headers. Lite wt Al roller rockers with proper valve scrub geometry. MSD electronic ignition and rev Limiter – new MSD wires. Single wire alternator with cog belt crank/water pump underdrive pulleys. Remote Surge tank. Trans – updated 2024 – Fresh legal super close ratio Hewland Dog Box conversion in a Spriget Rib case . Custom remote shifter. New driveshaft/yoke/U-joints. Rear axle: 3.9 Torsen Reinforced/bridged 3 link Spriget axle. Dual bearing hubs – HD axles. ARP Wheel studs Suspension: New 2024 custom Aluminum body double adjustable coil overs with dampers/springs built specifically for the car/corner weights - calcs available. Frt - New upper/lower A Arms. New Drop Spindle uprights/trunions/ new big bearing spindles /bushings 2023. Brakes: frt – new Girling LF14 calipers/rotors. Rear - Spriget 8” drums – drums/pads matched. All Dash 3 Aero. New Tilton Masters. Brake balance bar. Safety Fuel safe 5 gal. cell with custom mt. Facet high flow pump, fuel pressure regulator, gauge, all new Dash 6 lines and fittings. Kirky seat. LifeLine 10 # /4 nozzle fire system. Removable leather wheel. Autometer gauges. Memory 8” tack with shift lite. Inovate Wide range O2, OMP Belts. Race Panasorts on car. Lots more. Complete spares package available including: 2 sets of race Panasports with race and rain tire. Complete fronts suspension with upper and lower A Arms, Uprights Big bearing spindles/bearings, calipers, rotors, pads and bushings. Rear brake assemblies. Springs. Rear diffs. Engine parts: Blocks, Fresh Race heads – too much to list. Photobucket available with dozens of photos of the build available for people who phone me. https://l.facebook.com/l.php?u=https%3A%2F%2Fwww.youtube.com%2Fwatch%3Fv%3D3B1rslGMFXA%26fbclid%3DIwZXh0bgNhZW0CMTAAAR1hLsuvbpJXCmTnPkiSNoPHEjicuctqG1c7Y-mYiyTTQDRr6DLDgMQoVtM_aem_PSbhJGwWsm8KDuRcdeVFhw&h=AT0WW_2qWPpDAfFm3QjySQCjc6EJToHKMuxsaB9ldtGGoDZt69fs-riIy4OuBWdmd3pk6lTyexLJ_VyqcGIYaazEAKGuUA37Dhbb9TyiPCrEExFmPaQwrEXl-IkOoi3JchQ **Chris 585 330 5456 [cdmad4494@aol.com](mailto:cdmad4494@aol.com) ** **Originally $39,000 But will Consider reasonable Offers. ** **Can Build $ Up or Down for new Owner. Chris D 585 330 5456 cdmad4494@aol.com Rochester NY IMG_4350.HEIC IMG_4347.HEIC IMG_4348.HEIC IMG_4344.HEIC IMG_4342.HEIC IMG_3273.HEIC IMG_4351.HEIC

I have several steel and stock 1600 cranks and blocks. complete MAE ENGINES As well as the AX . 701 Lotus blocks and 711AA 1300 blocks about 10 complete engines with stock and Race heads. EVERYTHING HAS TO GO! Chris D 585 330 5456

Still available - Recent September wins at the Lime Rock Historics and Watkins Glen VRG events with fastest lap and overall Wins on both the Long and Short courses in the under 2.5 L group 3 class with strong fields. Chris D 585 330 5456

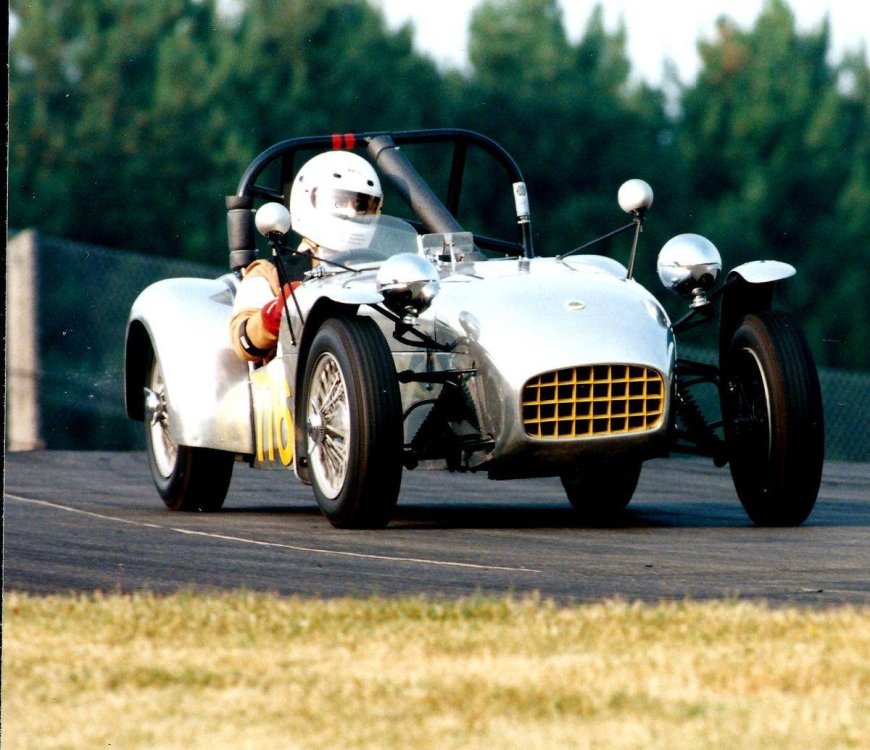

1961 Series 2 Lotus Seven. Serial number SB1125 with log books from the early 1980’s. Legal with all race groups and recently raced with SVRA, HSR, VRG, Lime Rock Festival and VSCCA with incredible race record. Complete Rebuild 2022 with updated cage, chassis, fuel system, brakes. Fresh built LEGAL 1500 non crossflow. All steel internals with Fresh Super Close ratio trans. Minimum weight at 1025 pounds. One of the fastest and best professional builds available. Includes: Engine: Original build 2022 with 10 events. Dyno development results available for 2022/23/24. 2737 Block, steel crank, Carrilo rods, CP pistons/low friction Total Seal rings. Dry sump oiling system. Head: new 2024 - valves/Beehive springs lt. wt. retainers – flow box development results available. Weber DCOE 40’s with match lowed Al intake, Uni filters. Al flywheel with 7 ¼” Ap clutch/pressure plate and hydraulic throw out bearing. Ceramic coated progressive tube headers. Lite wt Al roller rockers with proper valve scrub geometry. MSD electronic ignition and rev Limiter – new MSD wires. Single wire alternator with cog belt crank/water pump underdrive pulleys. Remote Surge tank. Trans – updated 2024 legal super close ratio- specs available. Custom remote shifter. New driveshaft/yoke/U-joints. Rear axle: 3.9 Torsen Diff. Rear reinforced/bridged 3 link Spriget axle. Dual bearing hubs – HD axles. ARP Wheel studs Suspension: New 2024 custom Aluminum body double adjustable coil overs with dampers build specifically for the car/ corner weights. Springs ordered based on motion ratio and sprung/unsprung natural frequency - calcs available. Frt - New upper/lower A Arms. New uprights/trunions/ new big bearing spindles /bushings 2023. Brakes: frt – new Girling LF14 calipers/rotors. Rear - Spriget 8” drums – drums/pads matched. All Dash 3 Aero. New Tilton Masters. Brake balance bar. Fuel safe 5 gal. fuel cell with custom mounting. Facet high flow fuel pump, fuel pressure regulator with gauge all new Dash 6 Aeroquip lines and fittings. Kirky seat. LifeLine 10 # /4 nozzle fire system. Removable leather wheel. Autometer gauges. Memory 8” tack with shift lite. Inovate Wide range O2, OMP Belts. Race Panasorts on car. Lots more. Complete spares package available including: 2 sets of race Panasports with race and rains. Complete fronts suspension with upper and lower A Arms, Uprights Big bearing spindles/bearings, calipers, rotors, pads and bushings. Rear brake assemblies. Springs. Rear diffs. Engine parts: Blocks, Fresh Race head – too much to list. PhotoBucket of dozens of pics available to those who contact me. Chris D 585 330 5456 cdmad4494@aol.com $39,000/B/O IMG_2769.HEIC

Looking for a 3 rail full synchro tranny. Race CR Straight cut or Dog box - first choice Elan box with the 3.0 - second choice Cortina standard box next Parts box or needing rebuild OK. Thanks Chris D 585 330 5456 cdmad4494@aol.com

Thanks - missed the ebay parts. Cd

I'd prefer a 6 bolt but can machine a good 4. There's got to be some out there... same with the lower oil pick up parts. Leads appreciated. Thanks Chris D

Mark - tried to contact you but there has been no response to your 1990's email or phone number... Chris D 585 330 5456

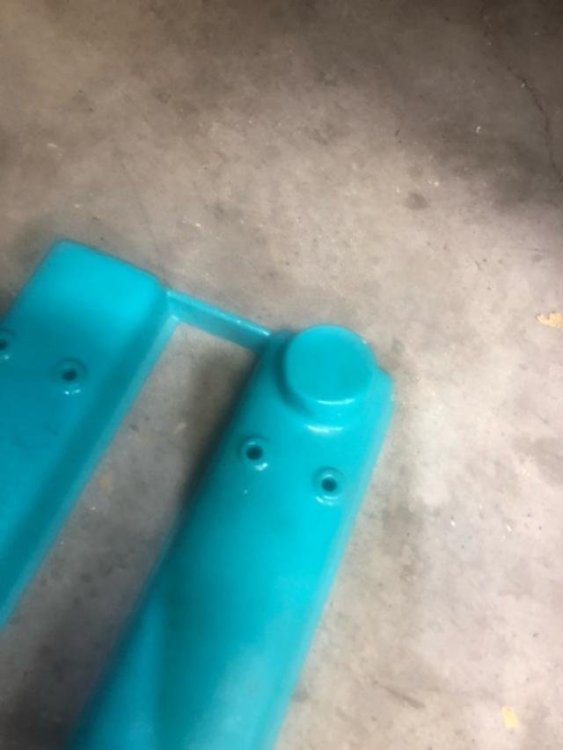

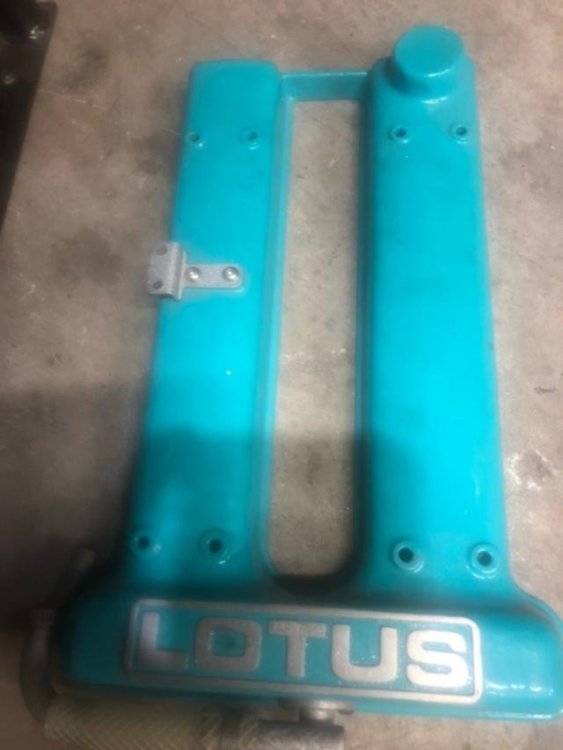

Converting a TC with a dry sump to a wet sump system. I have a nice VC with NO top oil fill provision Anyone have a stock one to buy or swap? Also need: a lightened flywheel for a STANDARD 8 1/2" diaphragm clutch - 6 bolt A stock Elan/Cortina/ Kent oil pan - baffled would be great Oil strainer and pick up pipe - inserts in the bottom of the block Thanks, Chris D Rochester NY

I also have several complete Kent motors - Race 1700 ~170 HP and 1300's ` 140 HP > equiped withWebers to sump pan and Al Flywheel to front dry sump pump. Electronic ignitions - Turn Key Various sets of steel rods - Carrillo and steel 1600 and 1300 cranks and 711 AA and AB Blocks. Leeson Close ration straight cut tranny - Freshened by Tommy Smith the Leeson "Guy". 1.8 first Lots of Race stuff and 2 Mallocks for sale....

I have several if you're still looking. Chris D 585 330 5456

Thanks for the interest - SOLD

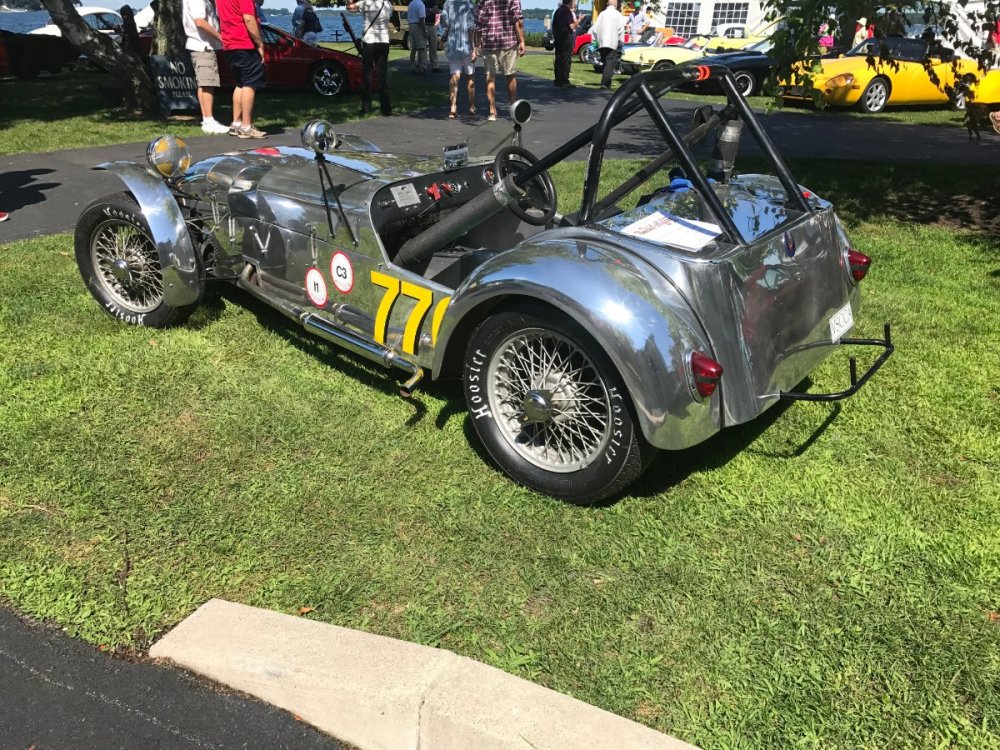

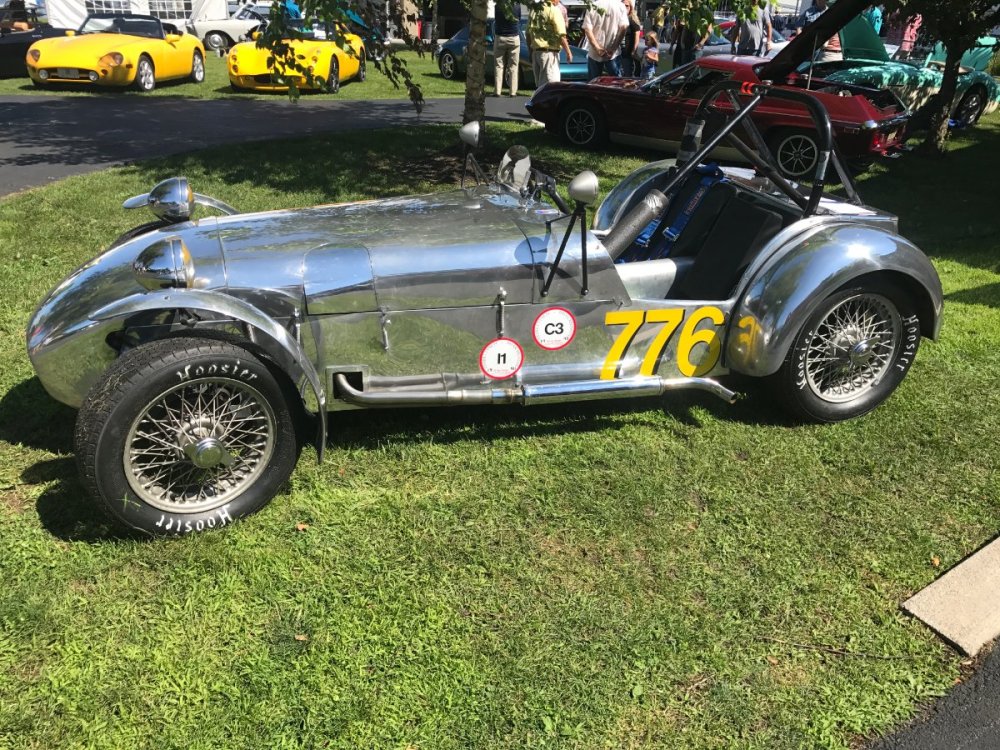

Ready to Race, Rally or just have fun on the street. SVRA/VSCCA/HSR/CASC/ VARA/VARAC eligible. Has SVRA, VSCCA and CASC log books and has passed the stringent SVRA Gold Medallion award for period correct preparation. Former Canadian (CASC) champion and winner of the Pittsburgh Vintage Grand. The car has participated in several of the Watkins Glen reenactments, Lime Rock charity runs, is currently registered in NYS and wears historic plates. Regularly street driven to car shows, "support" transportation at the track and ice cream runs... Restored in the mid 80’s when it was reskinned and the frame was replaced. At that time it lost its original frame ID tag and the originality cannot be documented. Still maintains its original 4 wheel drum brakes with Ford 8” twin leading shoe fronts and Triumph Herald rack and pinion steering. Continuously updated and improved, never bent. Excellent tubular space frame chassis, polished alloy body with cycle fenders and polished alloy tonneau. Per the previous owner write up on Race-Cars > “Highly tuned 948 BMC engine, bored to 1027cc, forged high compression pistons, prepared rods, steel billet crank, aluminum flywheel, full race cam, extensively ported and polished big valve 1275 head, race prepared H1 SUs, headers, balanced, baffled sump, rim flow valves, 1275 competition clutch. Very wide torque band. NOT a peaky race engine. Straight cut, close ratio trans, Spriget differential with alloy housing, special racing hardened axle shafts, updated roll bar with reinforced rear structure around Aluminum fuel cell and removable Petty bar, dual master brake cylinder, racing harnesses, 60 spoke wire wheels, oil cooler, electrical cooling fan, Spax adjustable shocks, straight pipe and muffled SS exhaust systems.” Resent current owner improvements – Hoosier Vintage TD tires. New adjustable AVO rear shocks and springs. Brake system completely updated with new performance brake shoes, dual master cylinder, new Frt & Rr. wheel slave cylinders and SS brake lines, clutch master and slave cylinder with new hydraulic line. Dual period correct Aero wind screens with Dot mirrors. Canvas tonnue cover. Pertronix Flame Thrower ignition. Suspension scaled and alignment. Additional fresh RJ Built 948 Race engine available. Starts right up. Shines like chrome. Reliable fun car. Photo Bucket Link - www.photobucket.com/u/cdmad4494/a/062b76dd-5173-4172-87f2-b774358cc194 $33,000 - B/O Chris D 585 330 5456 Cdmad4494@aol.com

I'm looking for at least one pair of race wheels - Modular or Lt Wt 13 x 7" wheels with the old Triumph / Lotus 3 3/4" bolt pattern. Thanks, Chris D 585 330 5456

Correct. The 1/2 ball mounts directly to the top of the box cover with a round circular cone - not shown - but I need that too. The cone that supports the lever in place threads in the the ~ 4" x6" - 4 bolt, top cover. thnaks, Cd

Needs some help obtaining an old 3 rail "Bullet 2000E" shift lever assembly for a Mallock. Same as the original Elan trannys Actual lever shape not important. Any laying around out there? Thanks Chris D
