So, with the holidays here and a recent soccer injury leaving me sofa bound, I figured it was a good time to sit down and start a build thread. I'm also doing a thread on the WSCC UK site so if you follow both forums you'll likely see much of the same content.



This is the first time that I have done anything like this so I am coming into this build as a complete newbie other than the experience I gained stripping down and refurbishing the parts from my 1990 Mazda Miata donor car.

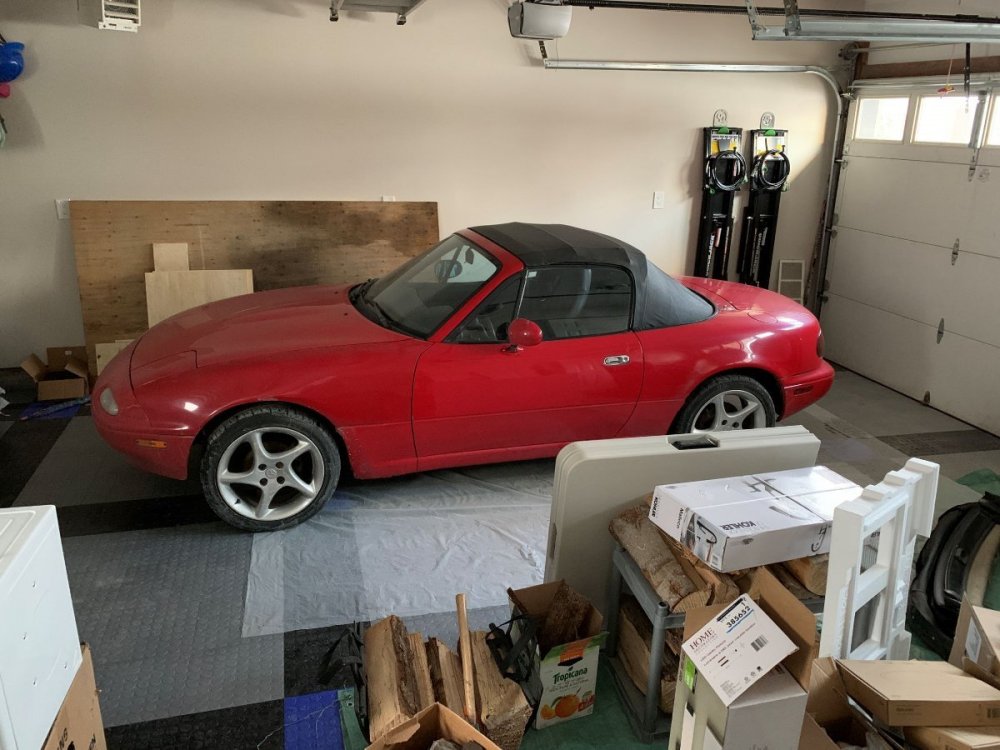

My donor was a 1990, with about 234,000 km on the clock.  I picked it up in February on a beautiful Canadian winters day, a couple of months before I was ready to order the kit. I hadn't planned on buying one that early in the year, but as they're so difficult to get hold of here in Ottawa (in donor condition), I had to leap on it when it came up.  On the surface it appeared to be fairly well looked after, but as I got into it I could see that the Canadian weather and salt had taken a bit of a toll. Needless to say the price reflected the condition.



IMG_1501a.thumb.JPG.79270019eed7a79ea440847944f7cc46.JPGIMG_1513a.thumb.JPG.322f4a787e03d0eb3ed722cb17d89b03.JPGIMG_1518a.thumb.JPG.7fe296be0d3015670d57815cbc22ae15.JPG



Link to comment
Share on other sites

  • Replies 41
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Posted Images

Donor disassembly and part out.

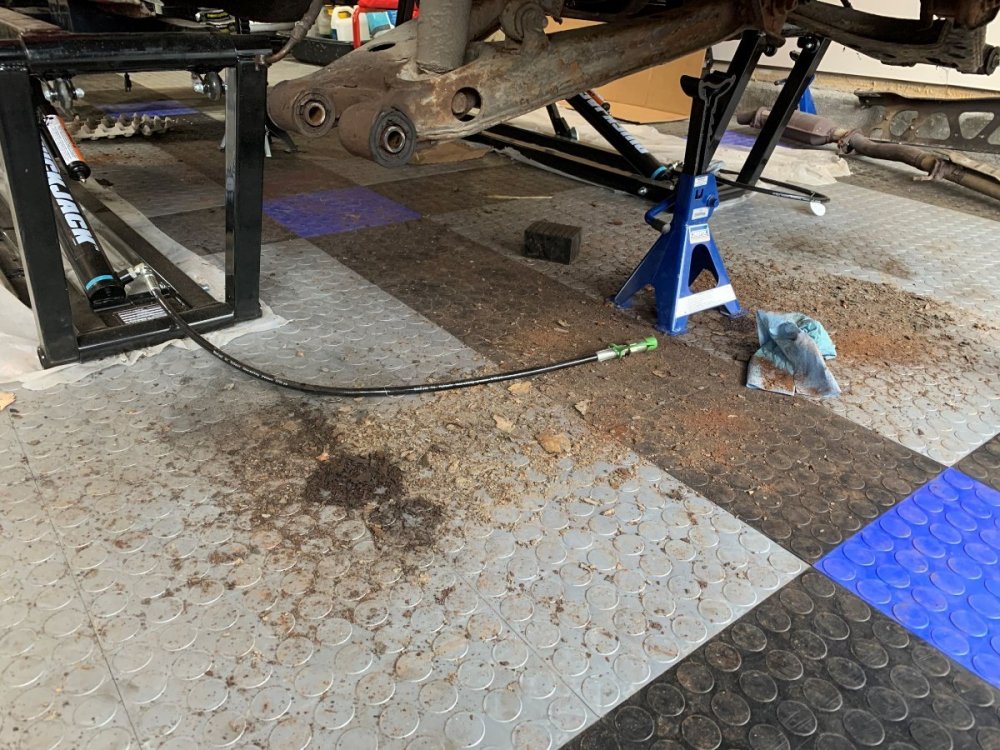

To my surprise, I found the donor disassembly a very enjoyable and relaxing process.  That may sound a bit strange as hobbies are supposed to be enjoyable, but I honestly had no idea I would enjoy it that much!! Even the mouthfuls of rust and crud had a certain appeal!






Another big surprise was how big the MX-5 Miata community was in Ottawa.  I advertised my car on Market place to let people know I'd be parting stuff out when I was finished and I was inundated with with people wanting this or that!  No sooner had I taken a part off the car and it was out the door! Seats, hood, soft top, carpets, headlights etc. all spoken for within hours of me posting!  In total I think I got back 50% of the purchase price through the part out and I still have some bits that will hopefully go after I'm done.

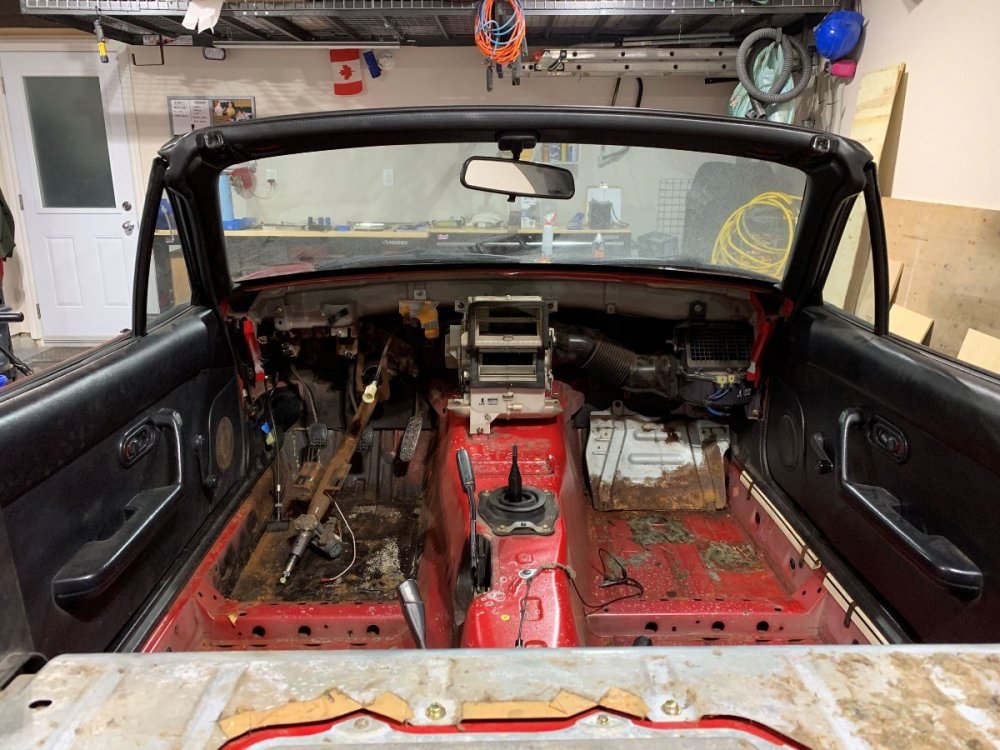

IMG_1985a.thumb.JPG.4f981cd1f9eb5e74d9feaa42e02ac130.JPGIMG_2073a.thumb.JPG.82a74e5528d3843109bdb1f7d4a299ce.JPGIMG_2119a.thumb.JPG.94a2316f2eac50df6ce106625f31a2e9.JPG

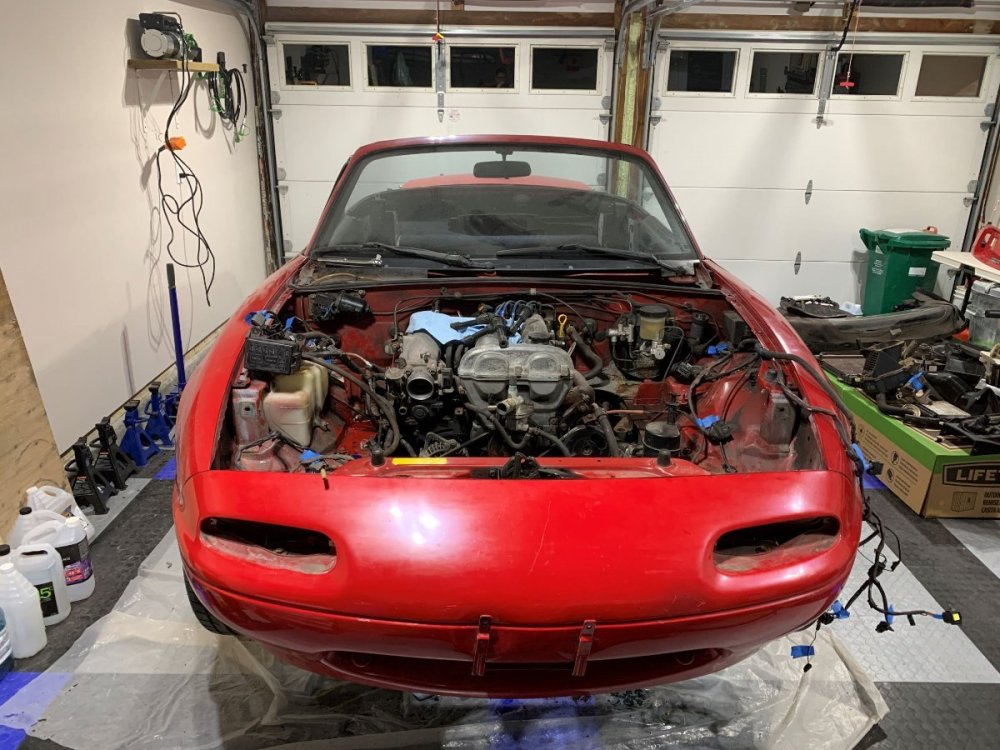

Engine out




Yummy!

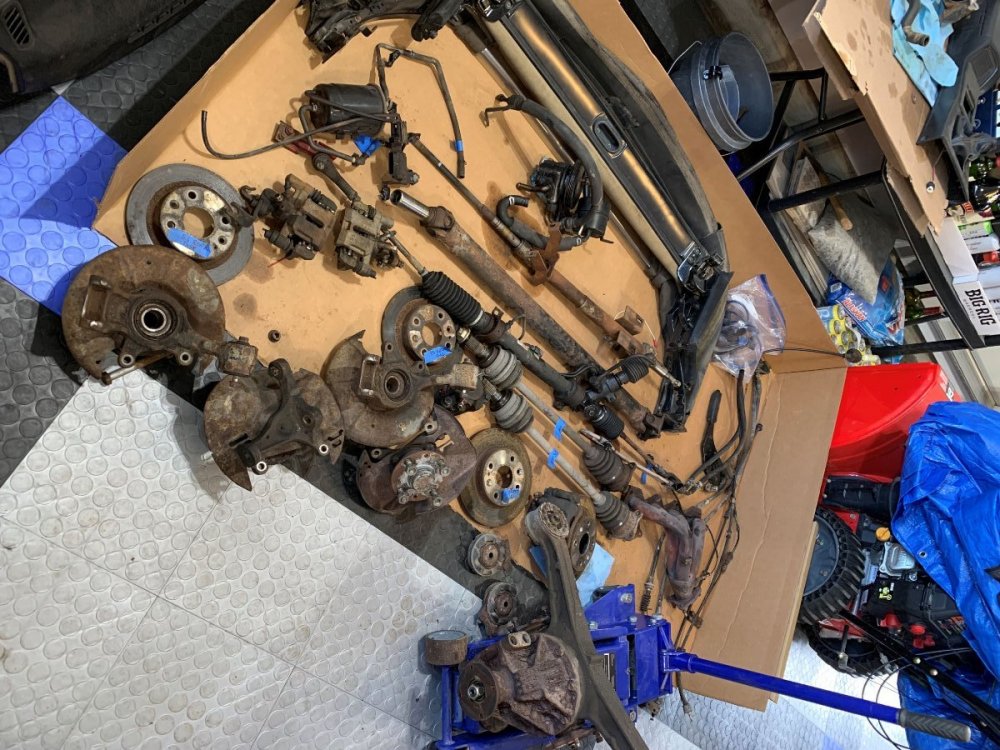

Parts ready for refurb.

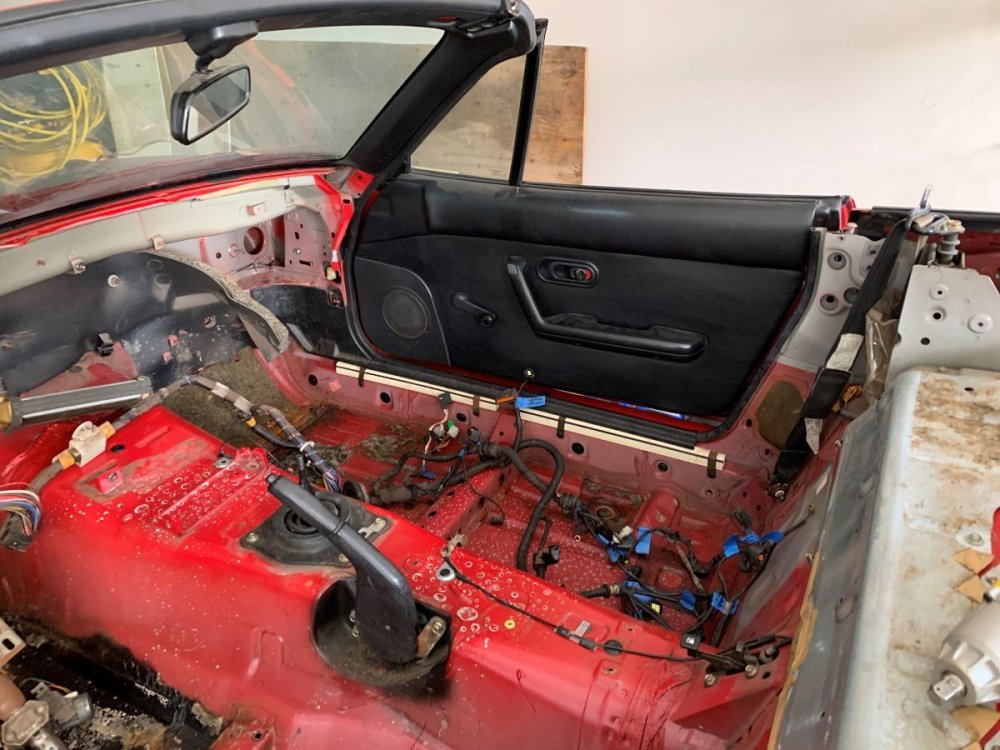

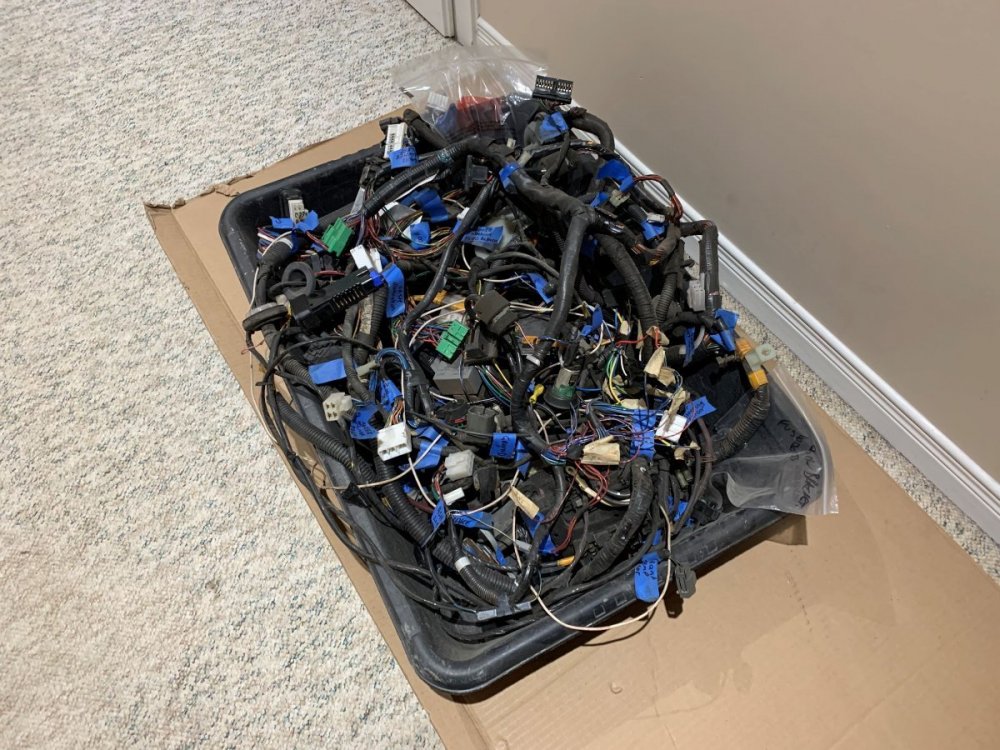

Harness labelled.

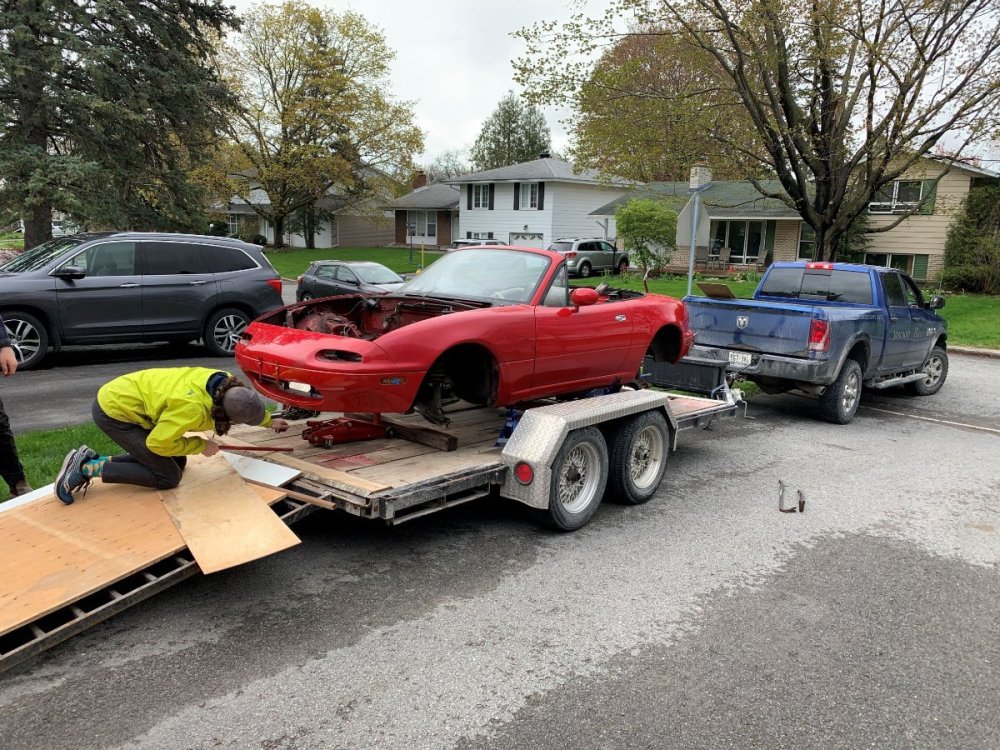

Once I took what I needed someone reached out and asked to buy what was left! so off she went!





...and then like Keyser Söze, it was gone!


Link to comment
Share on other sites

Refurb



Refurbing the parts is still an ongoing process and I'm slowly moving on to more complex parts as my confidence grows.

I don't plan on spending too much time talking about the refurb because just like the disassembly, there are a ton of threads and videos about the subject on the forums and Youtube.  There is one thing however I would like to share and that is my top 4 best friends throughout the de-rust and refurb. (Not sure if I'm allowed to mention products so feel free to edit)

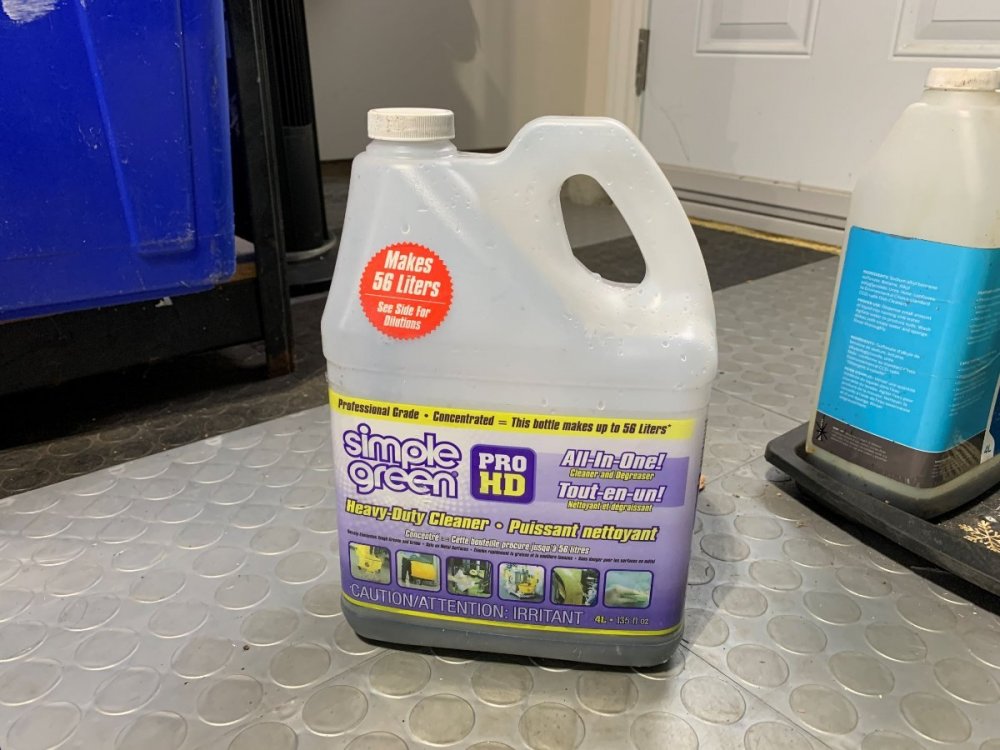

1. Simple Green purple - This stuff is amazing for shifting grease, grime and other crud.  It even took some of the carbon off my valves!!

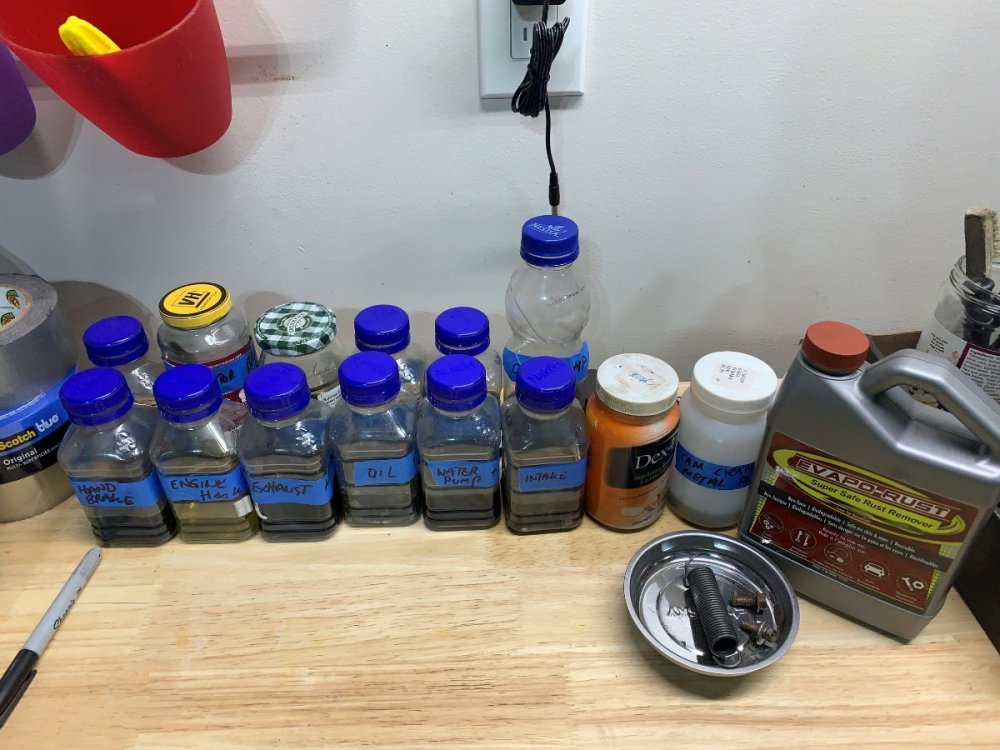

2. Evapo-rust - Environmentally friendly rust remover.  I poured a little into my kids empty juice bottles and put in rusty nuts and bolt.  They came out clean as a whistle, and I could reuse the stuff afterwards.

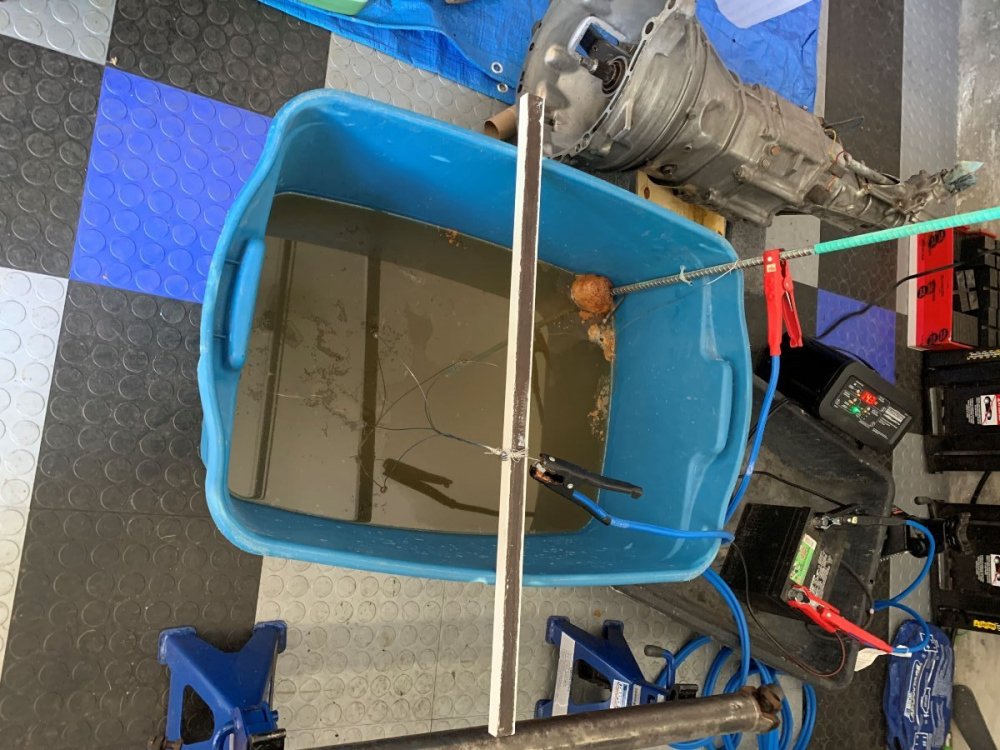

3. Electrolysis - I made a small electrolysis set up using a storage tub, battery, jumper cables, sacrificial rebar, some aluminum cable and water/baking soda solution.  I threw in some of the larger really rusty parts that looked unsalvageable.  After a couple of days, the transformation of parts was incredible!  Just make sure you keep the area ventilated and don't let kids and pets near! 😉

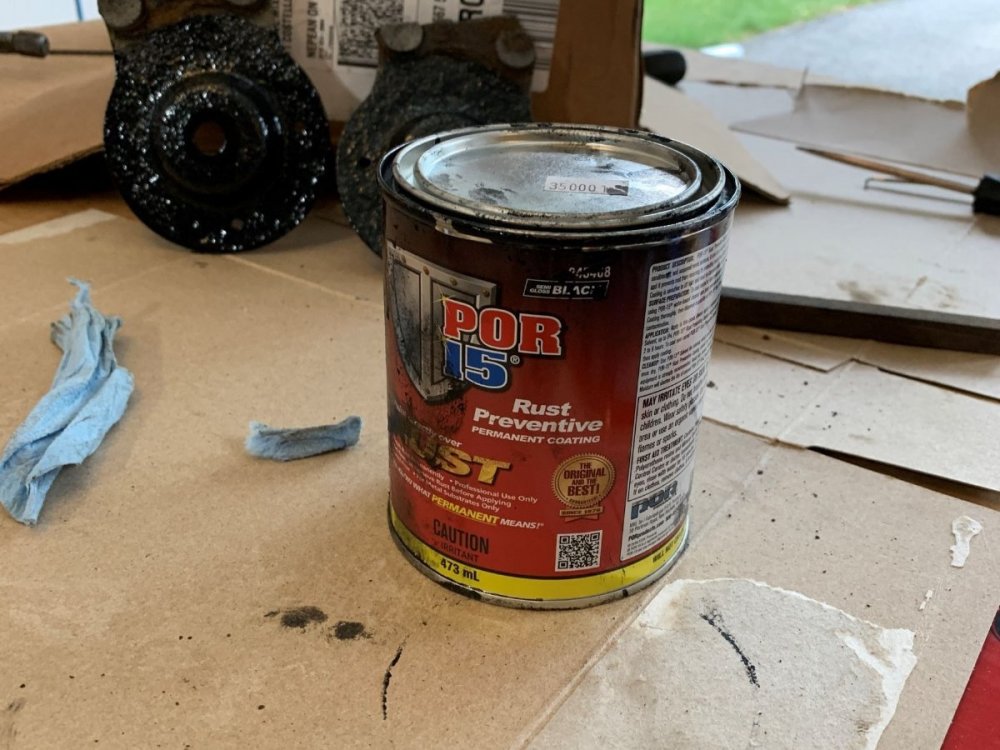

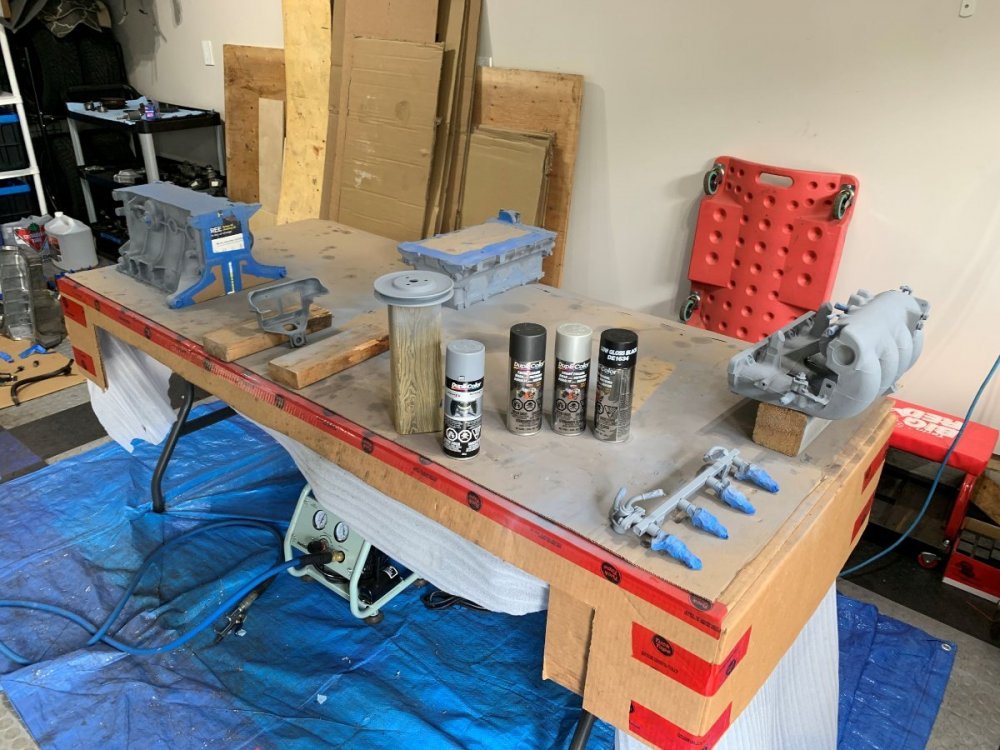

4. Finally, POR-15 rust preventive coating.  I used this on nearly all the parts that I refurbed, calipers, knuckles, steering shaft, handbrake....etc.  One lesson I learned a bit too late is that I should have poured a little at a time into a metal dish or tray and sealed the tin immediately. A little goes a long way and it dries quickly.  I wasted a lot and its not cheap here.


Link to comment
Share on other sites

Here are some piccies of the parts that I have refurbed so far....

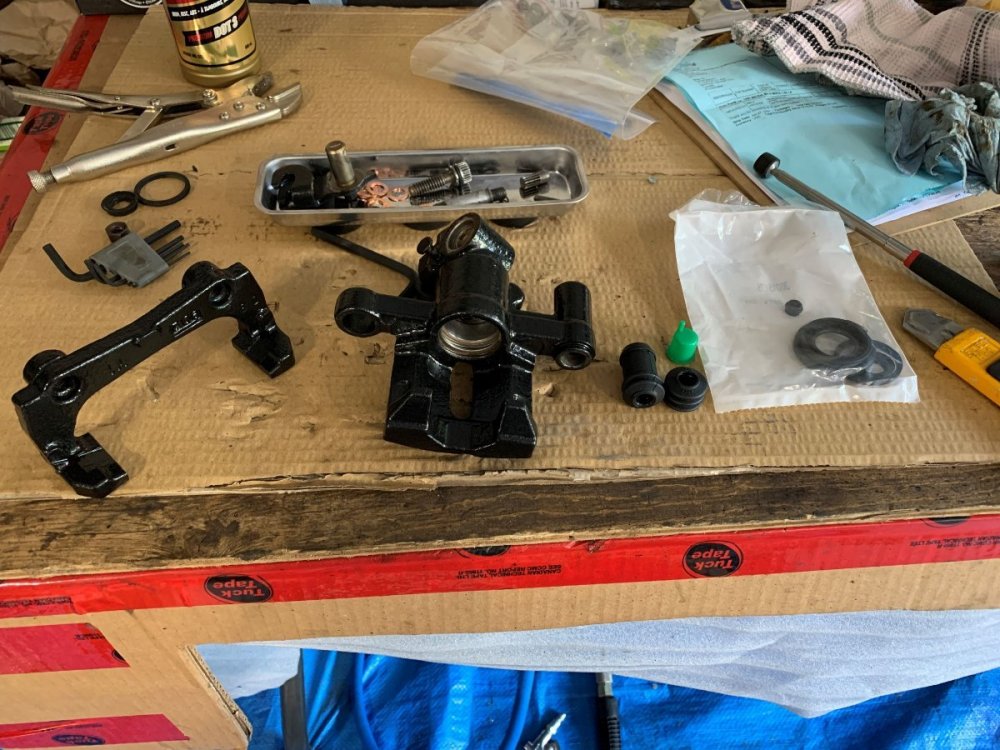

Brakes

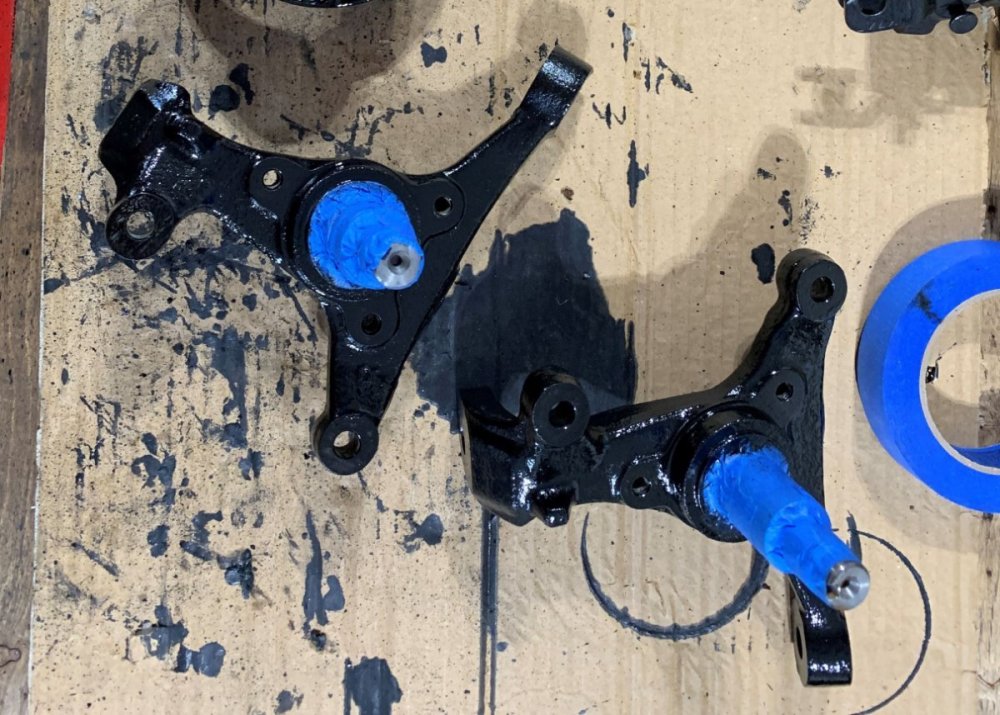

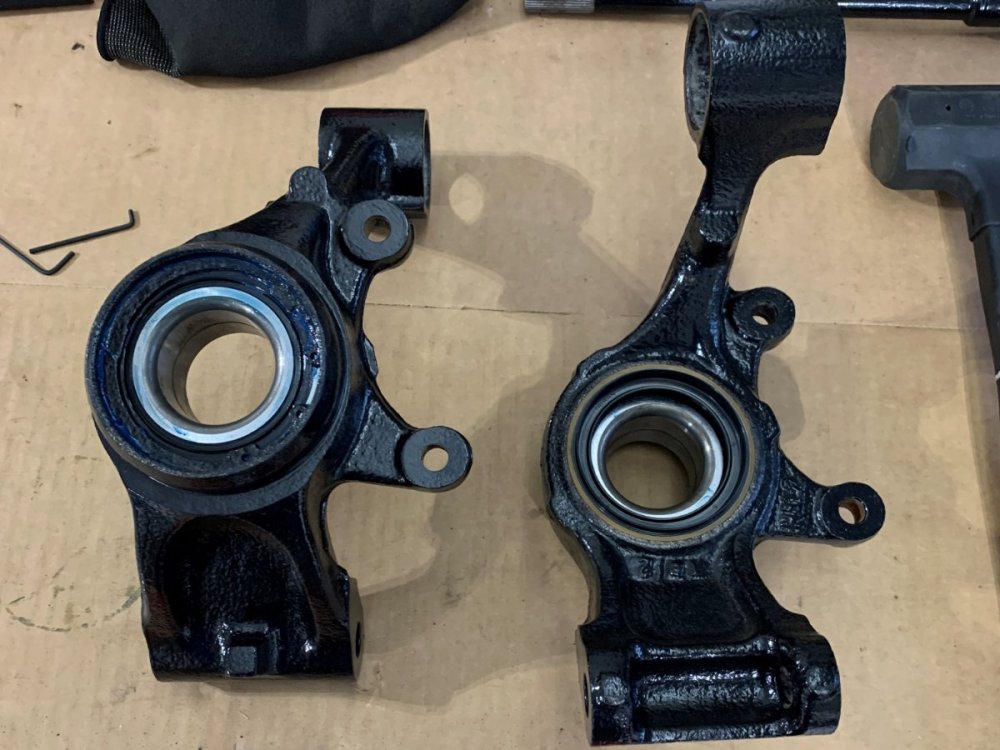

Spindles

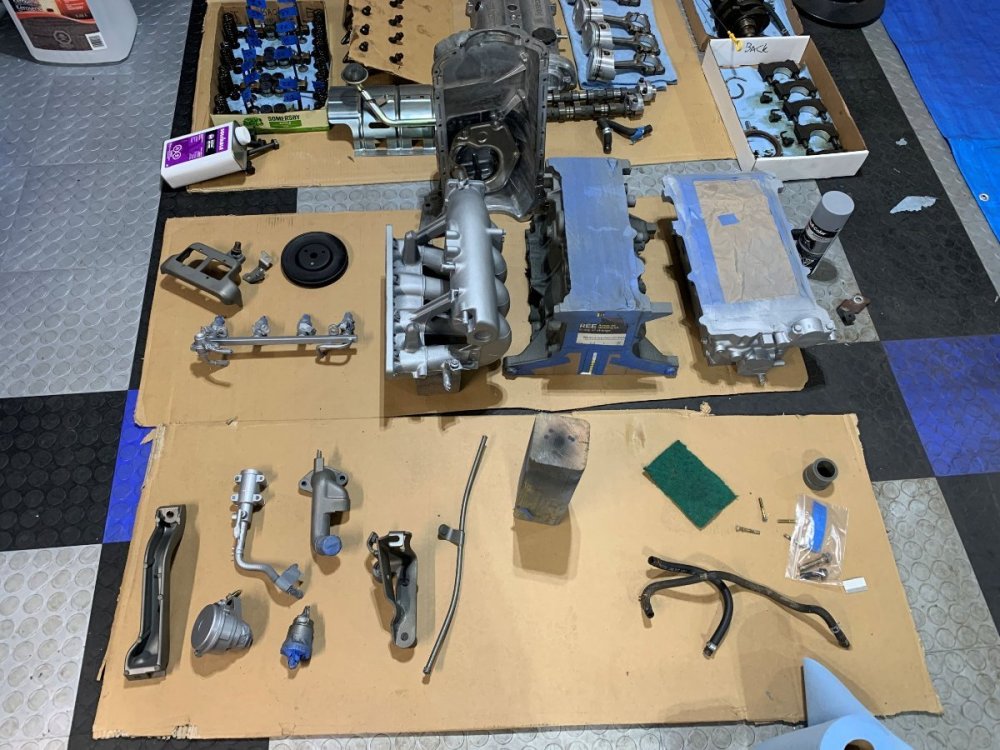

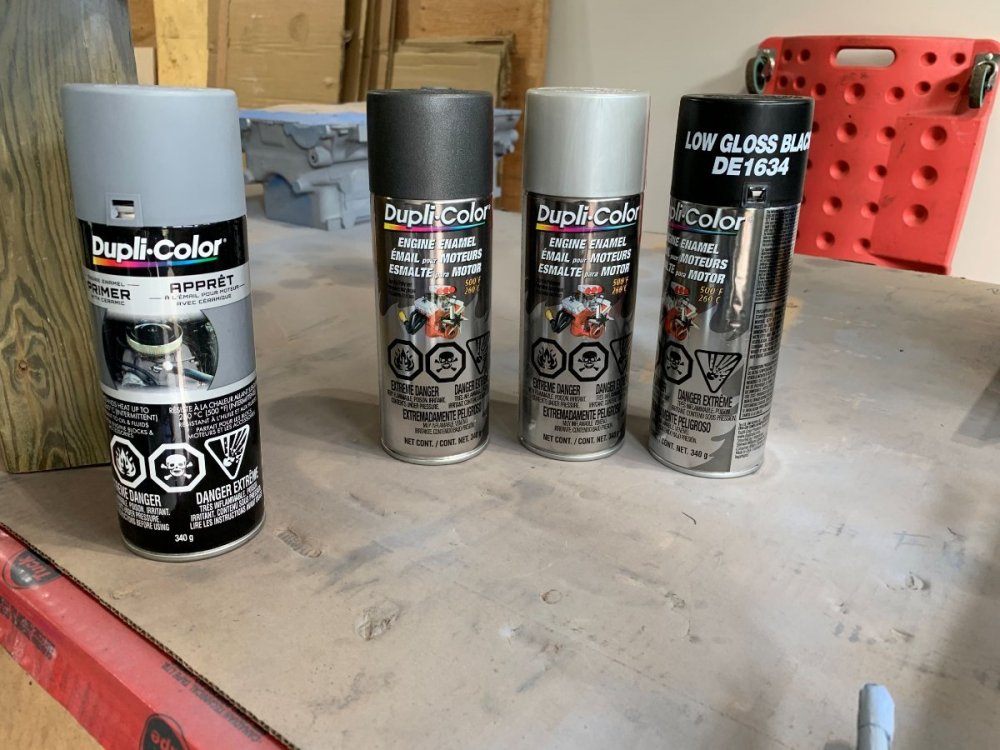

Engine Parts






As I mentioned, this is still an ongoing process, but I'm happy with the progress and learning so far. 🙂

Link to comment
Share on other sites

Importing in to Canada



Living in Canada I am fairly limited in terms of  what I can import to do a build project.  The import rules state that "Kit Cars" cannot be imported as they would be considered as a complete motor vehicle and need to comply with modern vehicle standards (Airbags, ABS, etc.).  "Car Parts" or "Car Starter Kits" however, are allowed provided that they do not include majors components such as engine and drivetrain, etc.  a complete list is available from Transport Canada.



Lucky for me Westfields Mazda Miata (MX-5) based Single Donor Vehicle (SDV) kit complies with the Transport Canada import rules and is available through their North American distributor Manik Sportscars based in Richardson, Texas.  Tom McClintock of Manik made the ordering and import process very easy for me and what I had imagined to be a real headache became a piece of cake with Toms help.  For those Canadians following this thread the steps were:



1. Choose your options package from Manik.

2. Manik provide you with a complete Bill of Material and help prepare necessary import paperwork.

3. You submit paperwork to Transport Canada in Ottawa.

4. TC reach out if they have questions (Manik worked with me to provide what they needed)

5. TC issue approval to import papers



Boom, Boom, Boom, it was that simple!!!  I cannot thank Tom enough for his help!! 🍻



Once I had the approval in my hand I could go ahead and place my order!

Link to comment
Share on other sites

12 hours ago, Croc said:

This is one way to keep busy in winter!



How much of the Miata is used in the Westfield kit?   I guess drivetrain, brakes, parts or all of the wiring harness?  What else?

Hey Croc,



The build manual says that I need the following parts from the Miata.

  • Engine, gearbox and ancillaries,
  • Speedometer cable,
  • Front uprights including brake discs, calipers, ball joints and steering arms,
  • Rear uprights including brake discs and calipers.
  • Propshaft,
  • Differential and drive shafts,
  • Upper and lower steering column,
  • Steering wheel,
  • Handbrake lever and cable,
  • Wheels and tires,
  • Wiring loom & fusebox,
  • Dashboard gauges and switches,
  • Radiator fan,
  • Battery & tray,
  • Side repeaters,
  • Fuel filter, and
  • Horn.



Link to comment
Share on other sites

Have you inspected closely the key way in the nose of the crankshaft and in the harmonic balancer?  This is a critical area of failure in the 1.6 Miata engines.  If both slots are good purchase a new key and main bolt.  Make sure you use the correct torque on it during assembly as there are two different torque specs depending on which of the three crankshafts used.   Over torquing can lead to failure.



Everything you need to know about the 1.6 crankshaft is contained in this:  https://www.miata.net/garage/crankshaft.html



In 2006 I installed a 1.8 Miata engine and transmission in a Caterham SV chassis.



Link to comment
Share on other sites

My Build Plan



My plan is to build a streetable autocross car that has a traditional British look and is comfortable enough for my wife to join me for weekend drives.  I have no real timeline for the build, I just want do a nice job, learn lots, make some new friends on the way and create something to be proud of!



Here's what I ordered so far from the Westfield Miata picklist:

  • Westfield Sport Miata Kit (with 1.6l NA Miata Engine from Donor)

Interior

  • Sport Turbo Euro Seats

Exterior

  • Full Electrically Heated Screen - Standard
  • Side Screens
  • Classic body front and rear
  • Chrome Package - Includes Polished Screen, Lamps & Roll Bar
  • Boot Tonneau
  • Rear Arch Aluminum Stone Guards

Racing, Suspension & Handling Options

  • Nylon Suspension Bushings
  • Detachable Rear Wheel Arches
  • RAC Specification Roll Bar

Colour

  • Body - British Racing Green
  • Seats - Biscuit (Cream)
  • Side panels - Biscuit (Cream)
  • Carpet and centre - Black
  • Tonneau and doors - Black

Other items bought or swapped (not including items purchased for refurb)

  • Differential and Driveshaft - Upgraded to NB LSD
  • Harnesses - Schroth Westfield II ASM 4 pt
  • Steering wheel - TBD
  • Wheels and Tires - TBD

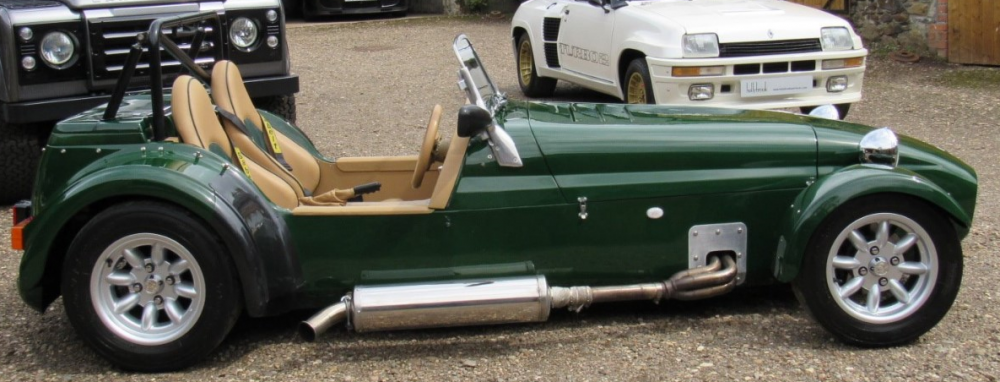

My inspiration comes from this car that I saw for sale in the web (except my dash, steering wheel, kick panels and handbrake will be black:








Link to comment
Share on other sites

42 minutes ago, scannon said:

Have you inspected closely the key way in the nose of the crankshaft and in the harmonic balancer?  This is a critical area of failure in the 1.6 Miata engines.  If both slots are good purchase a new key and main bolt.  Make sure you use the correct torque on it during assembly as there are two different torque specs depending on which of the three crankshafts used.   Over torquing can lead to failure.



Everything you need to know about the 1.6 crankshaft is contained in this:  https://www.miata.net/garage/crankshaft.html



In 2006 I installed a 1.8 Miata engine and transmission in a Caterham SV chassis.



Hey Scannon,

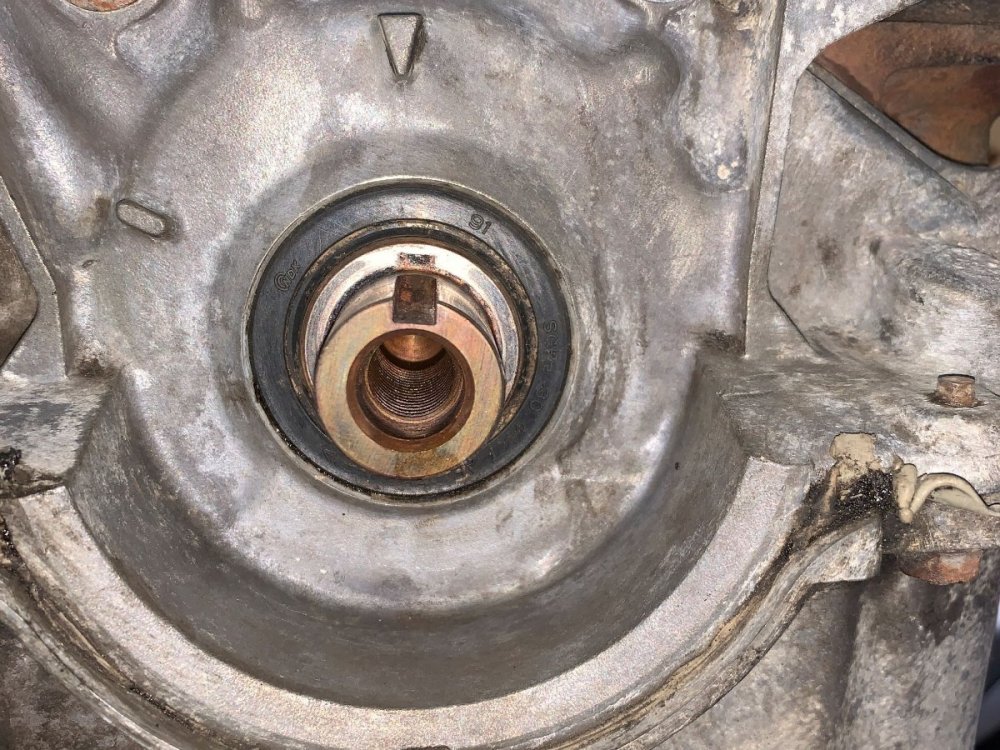

Yes I did!  It was one of my big fears and the first thing I checked when I pulled the motor out.  Thankfully it all looks good.  Thank you for the reminder and link!!




Edited by DanM
Link to comment
Share on other sites

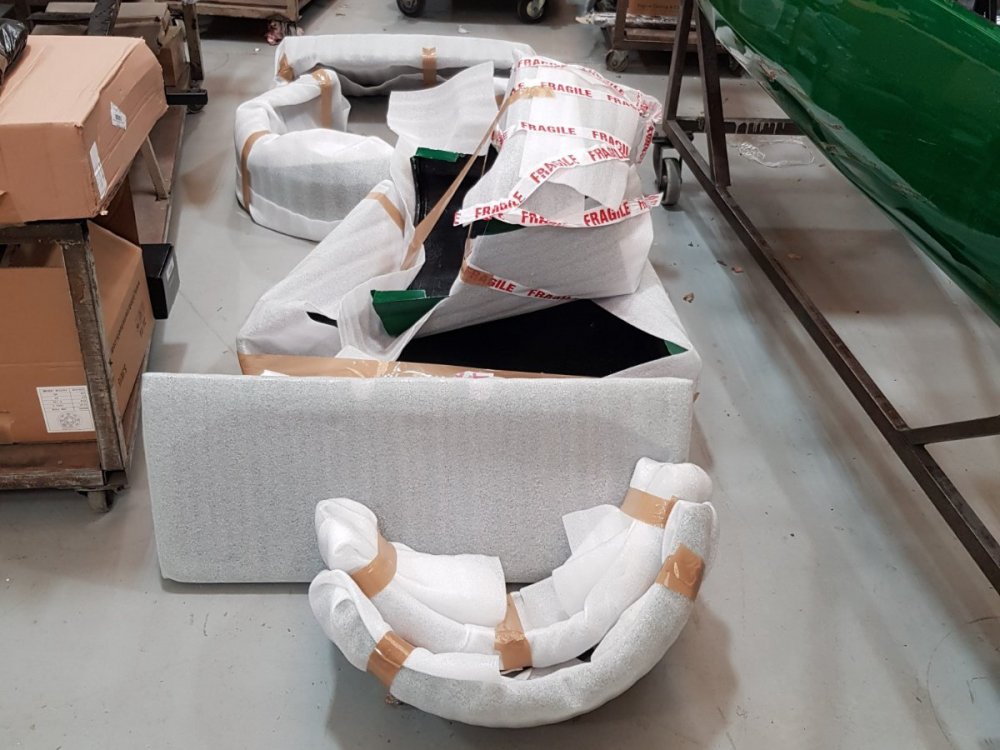

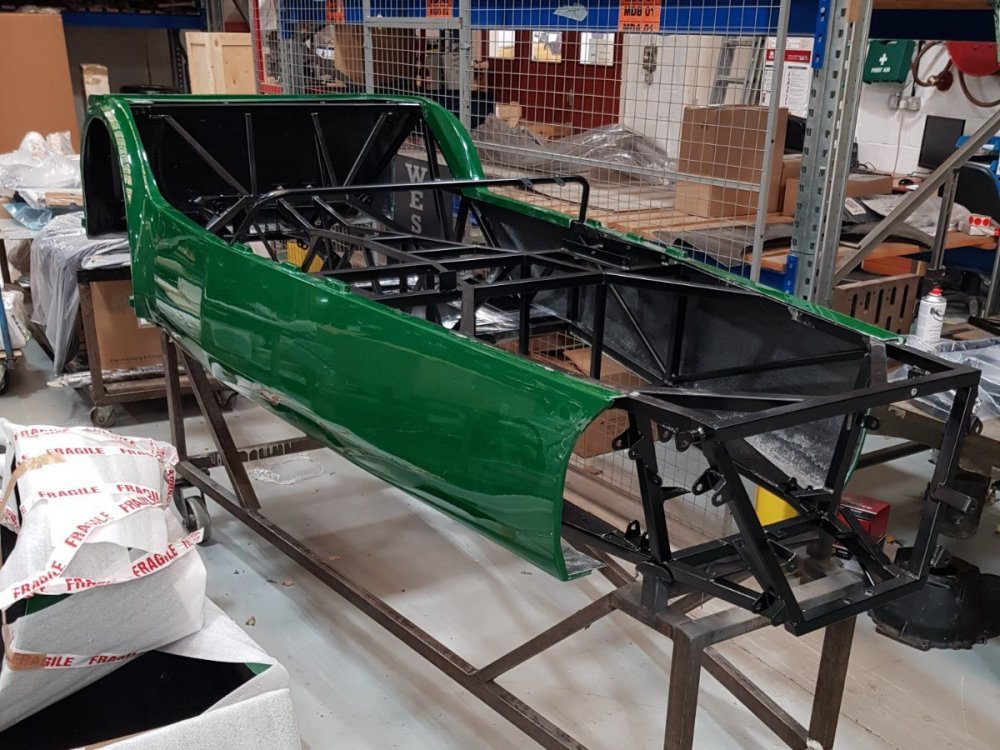

I officially ordered my kit on the 22nd of March 2021 and it was ready to be crated by the end of July.






It then took another 3 months to be crated and shipped from Liverpool to Montreal where it passed through customs and was delivered to the freight depot in Ottawa.  Manik provided me with the shipping details so I could track the progress of the ship from Liverpool.


Link to comment
Share on other sites

Kit Delivery?



On the forums I see pictures of people’s kits being off loaded from delivery trucks at their homes, so I naturally assumed that mine would be delivered too.  Unfortunately this wasn’t to be!  Once I got word that the kit was ready for collection at the freight terminal, I quickly had to figure a way to 1) get it home and 2) get it off loaded into the garage.


Link to comment
Share on other sites

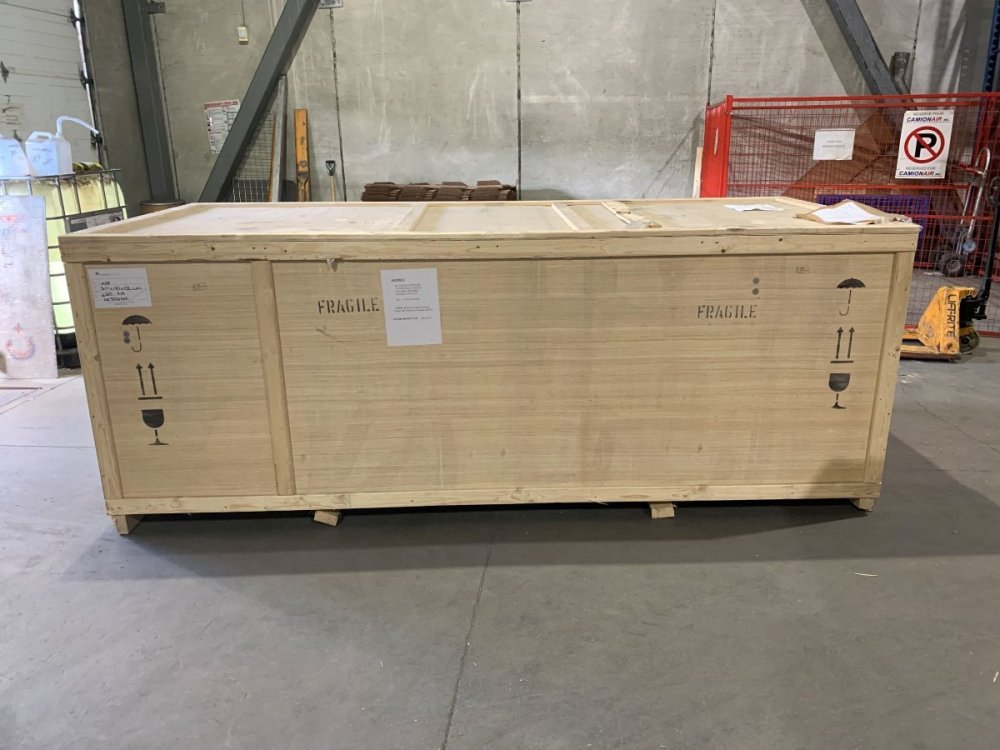

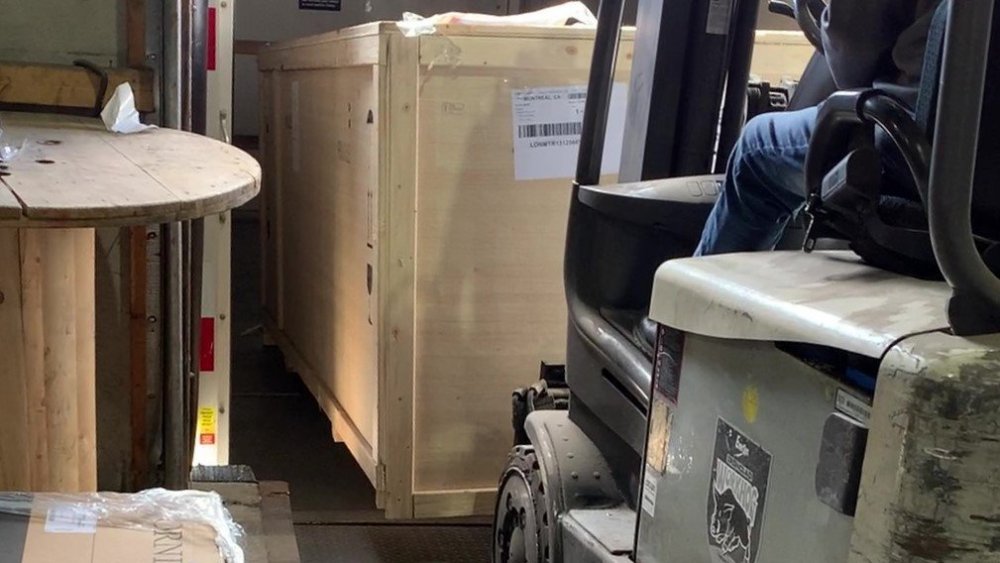

I initially thought I’d be able rent a car transporter similar to the one I used to collect the Miata, however as the freight terminal did not have a forklift on the truck side of the loading dock I had to change plans.  Next, I looked into renting a box truck with a deck height bed, but there was nothing available in my timeline.  Finally, I resorted to renting a large moving truck from U-Haul with the highest deck I could find and rolled down to the freight terminal in the hope that we could somehow get it in.

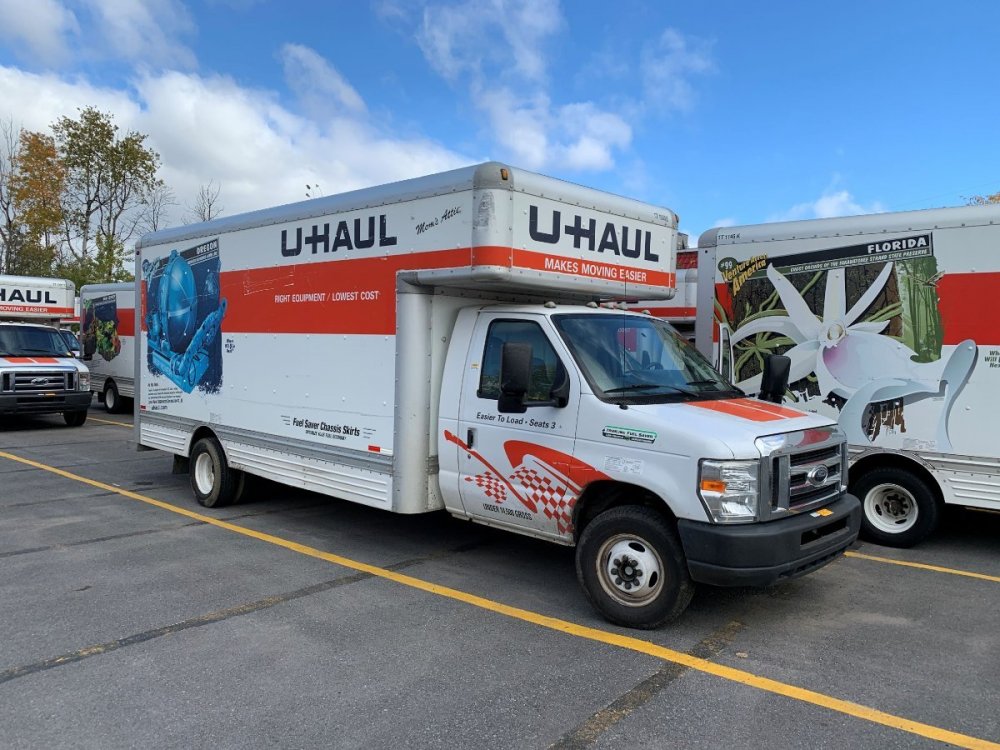

20 foot truck.




Should have put my heels on....

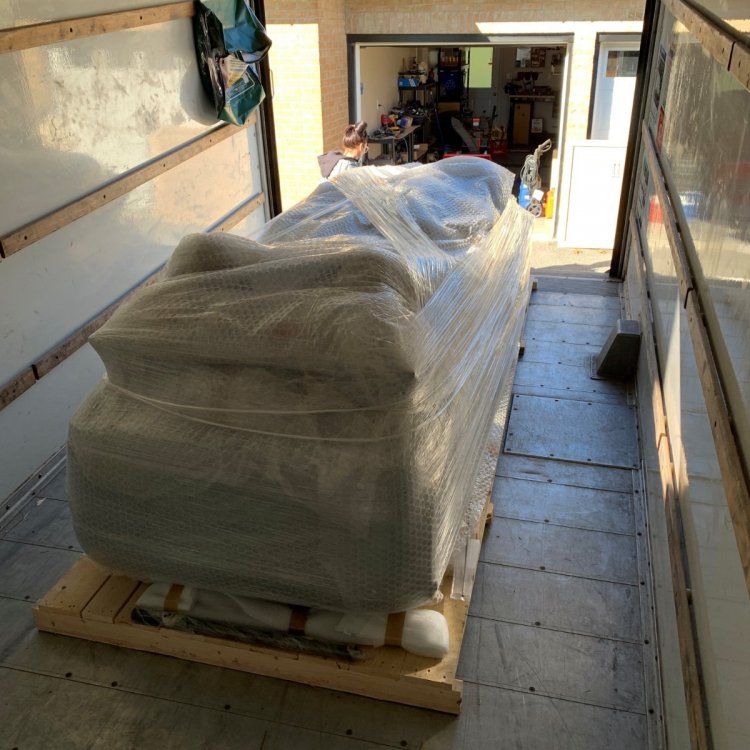

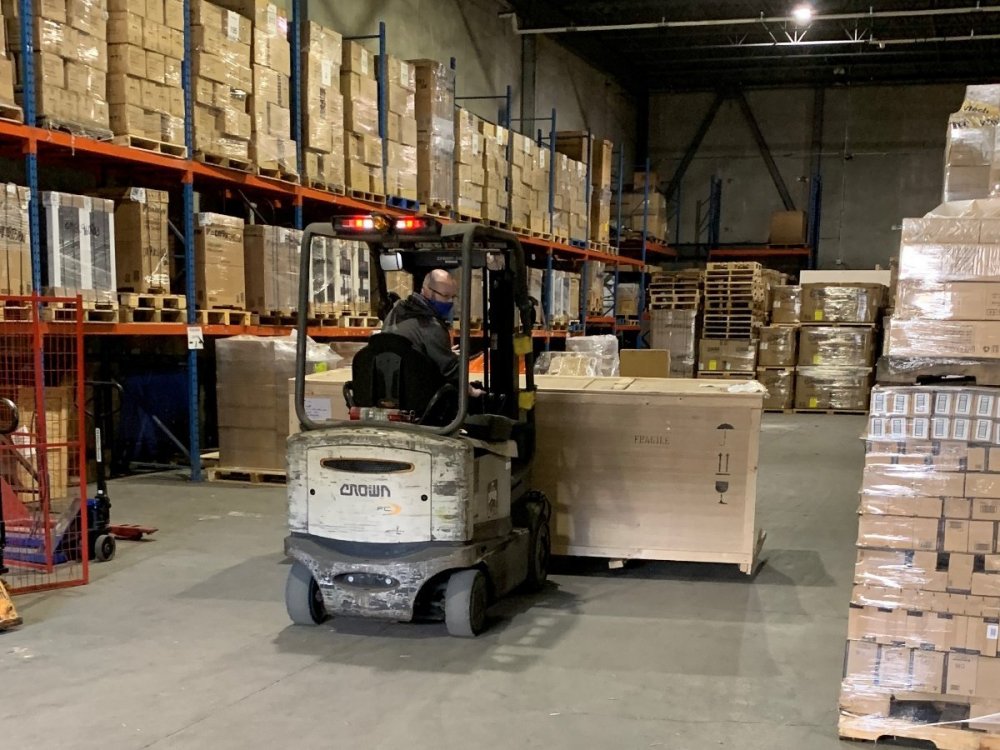

Here we go.....




Almost there.....

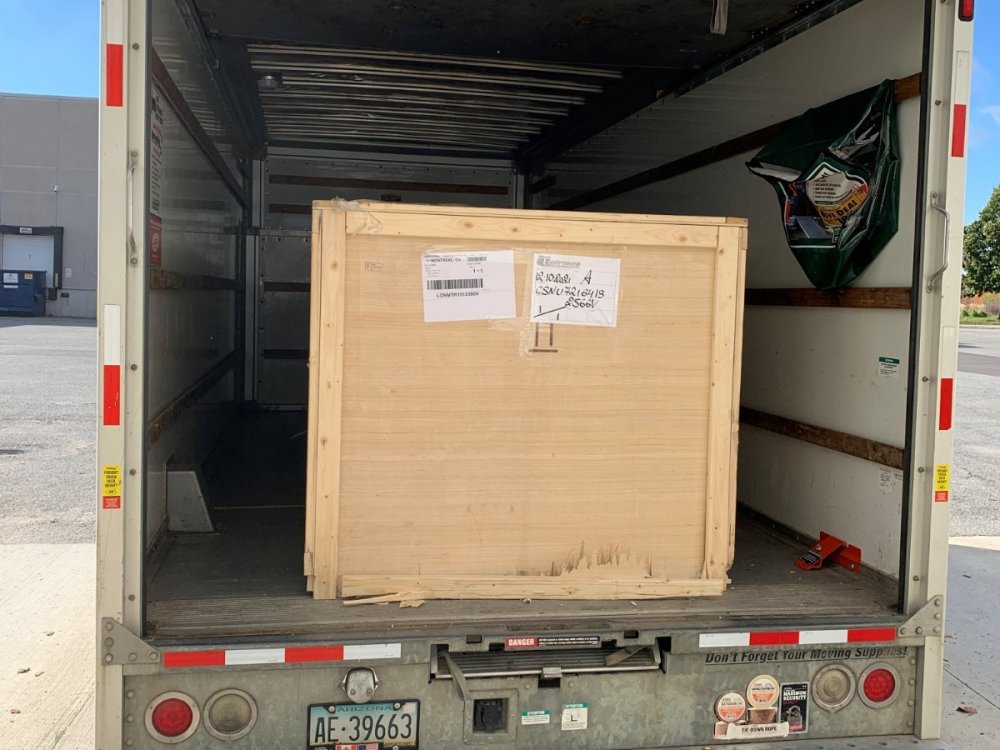

It's in!! Phew! Step one complete.  Now to get it home.


Link to comment
Share on other sites

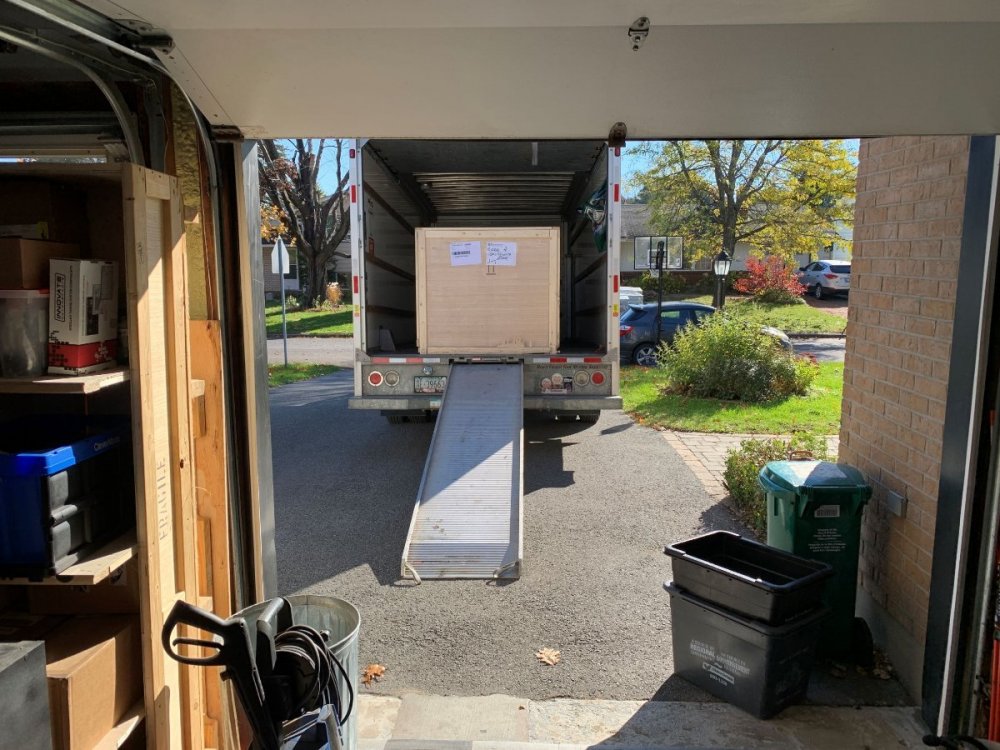

Off Loading



Once I got the truck home I made a cup of tea and took a moment to think about my next move.  To be honest, it was quite an emotional 15 minutes.  I have wanted to build a car for over 20 years and to be sitting alone in my house with my kit on the driveway was quite moving for me.









So what was my plan for off loading? Up until now it was all about getting the kit picked up ASAP, working around freight terminal availability (Mon -Fri), my busy work schedule, and the rental truck availability.  The crate was too big and heavy to lift off the truck and I had no concept of how it was packed inside.  My plan was to take my time, dismantle the crate in situ and bring in each part of the kit piece by piece.



Due to the short notice I had no friends available to help, but thankfully, one of my neighbours came home from work early and offered a hand.  My wife also cancelled some appointments and came home to take photos! :party:

First Shot!




Man, there's a lot of screws!




and more screws....

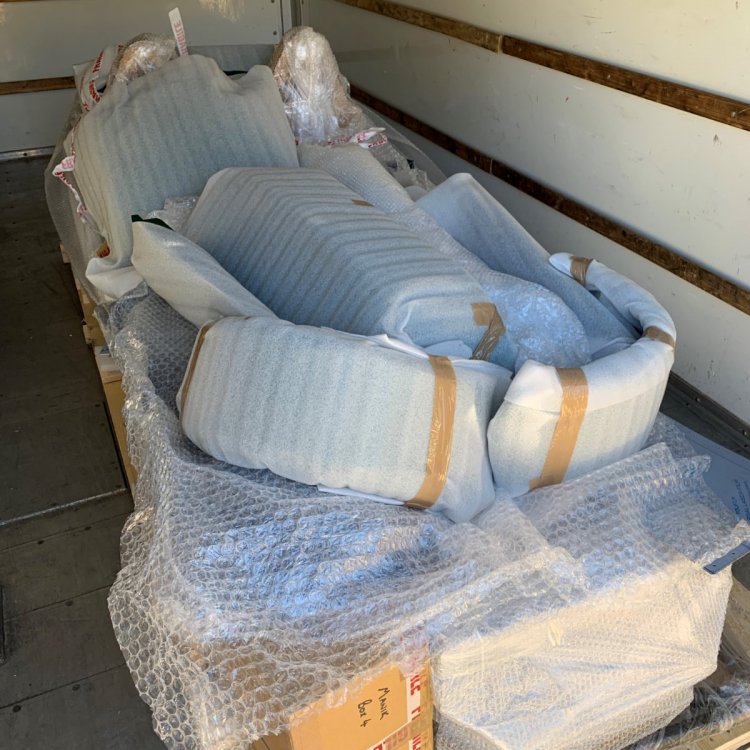

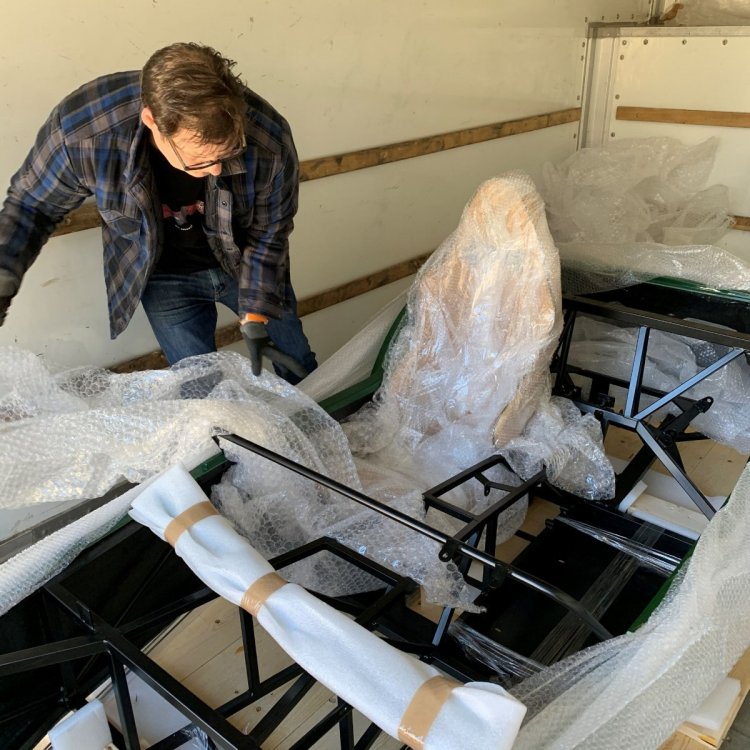

and now wrapping....




...lots of wrapping!!




Wow! they really protected things well!! I'm impressed!




....and finally after an hour or so, it was in!!






Edited by DanM
Link to comment
Share on other sites

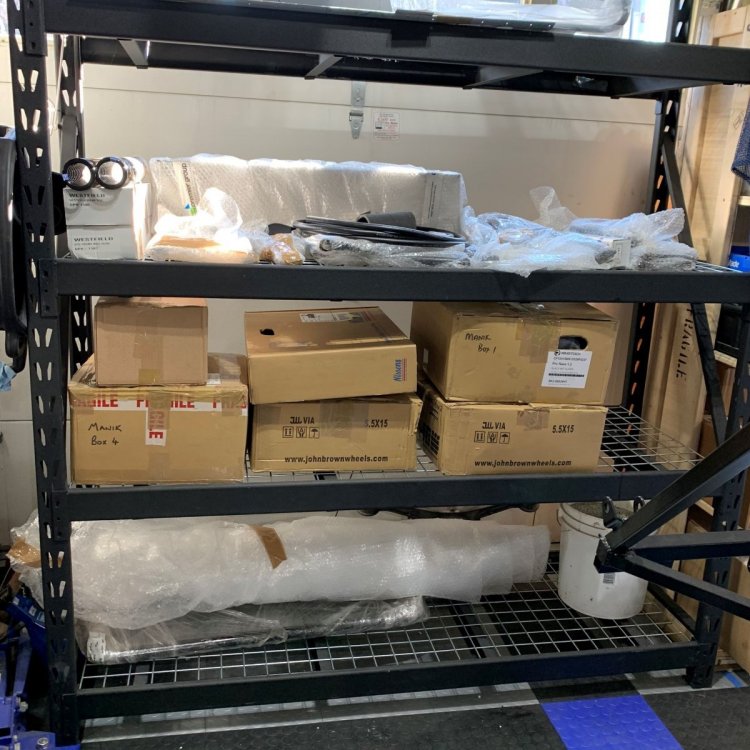

Inventory



Next day, once the truck was returned, it was time to inventory the shipment. This needed tea and lots of it!

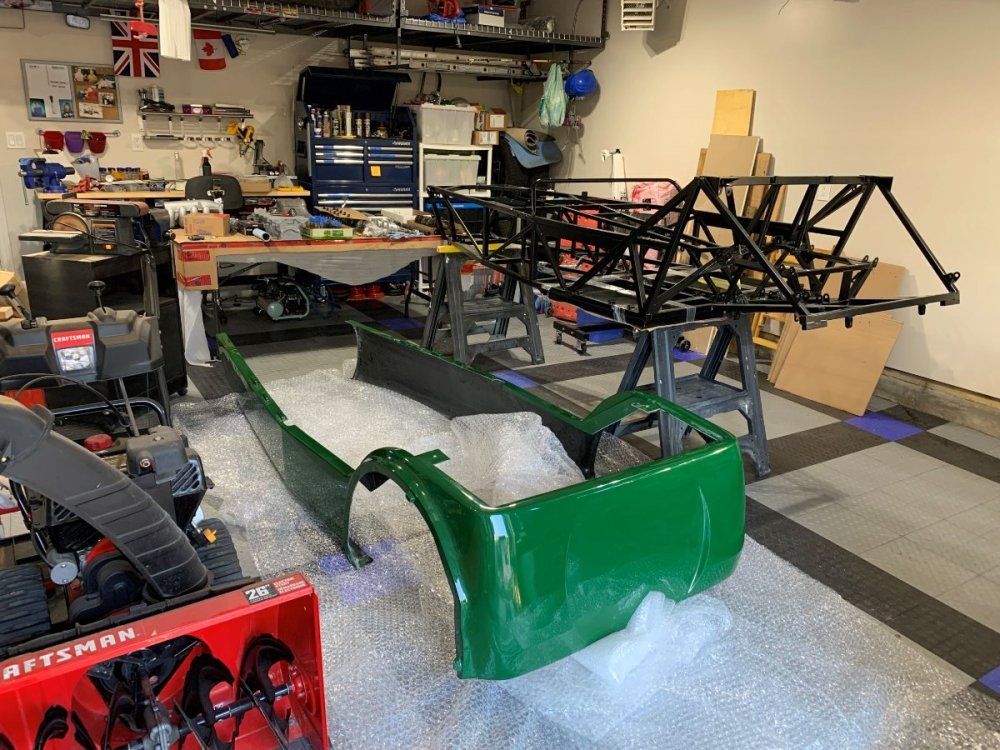

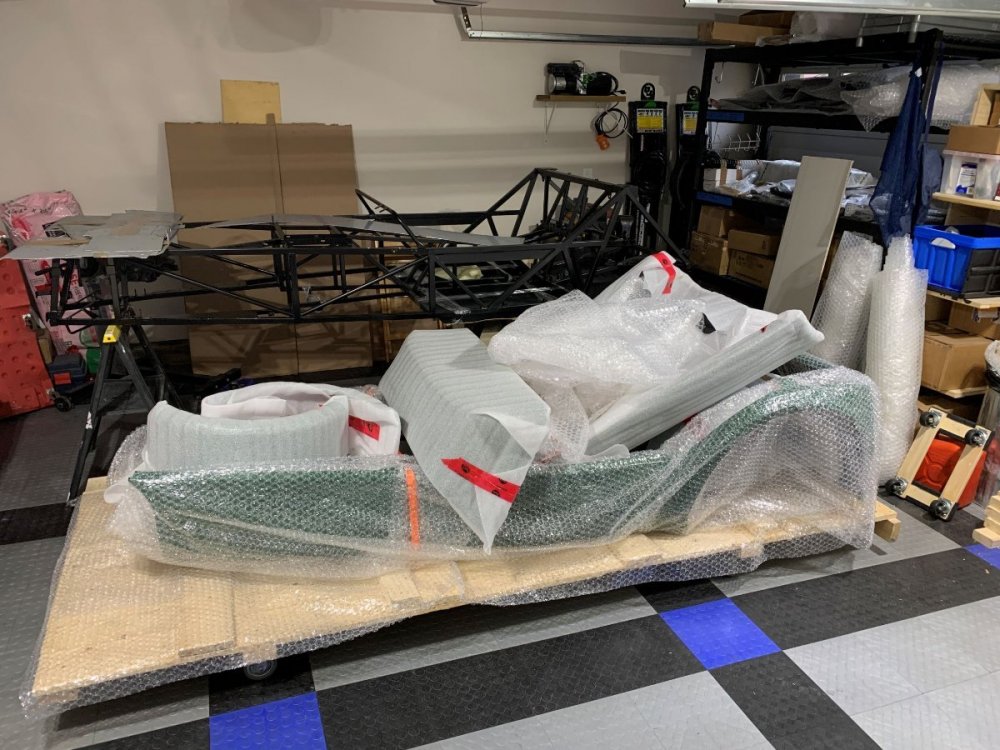

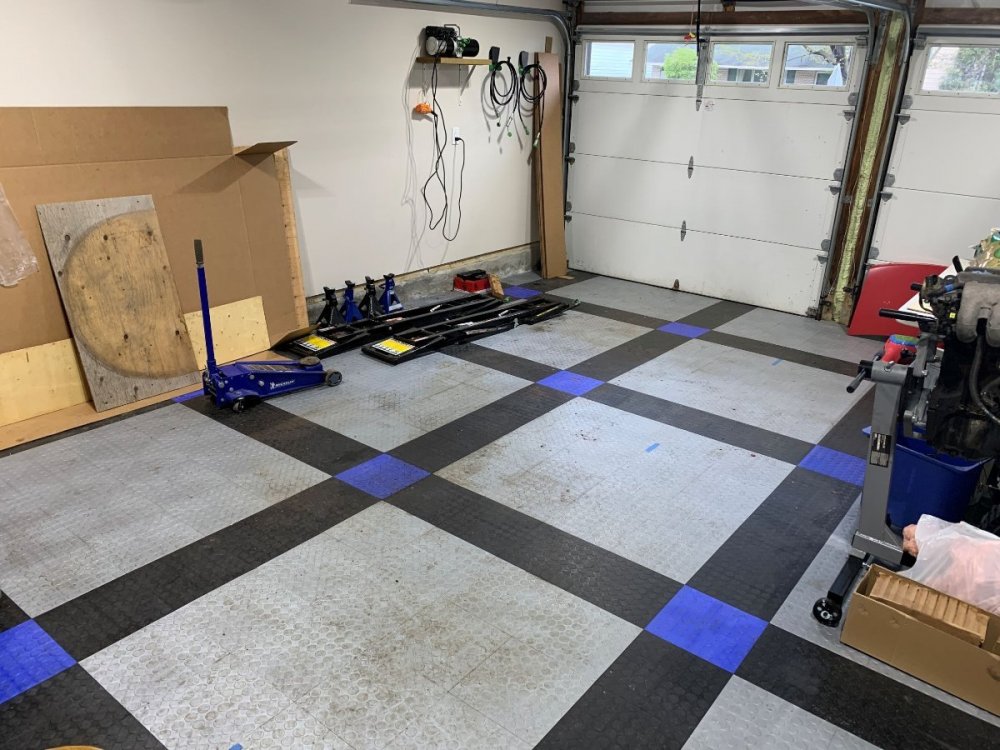

Before I started I needed to make space for the parts.  I decided to recycle the shipping crate and convert it into a rolling platform by adding some cross braces and wheel dollies.  This would be used to store the body, etc. and allow me to roll it out of the garage as needed to create space to work.

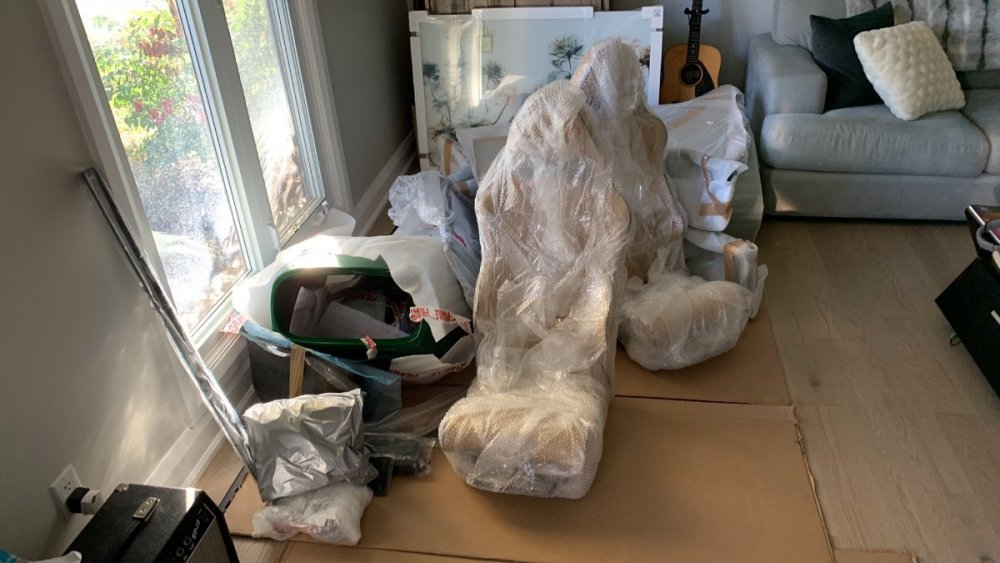

Once completed, job one was to inventory all the big items that I’d stored in the house overnight while I got organized, things like the nose cone, hood, seats and arches.  I was on borrowed time and these all needed to be gone before the family got home!

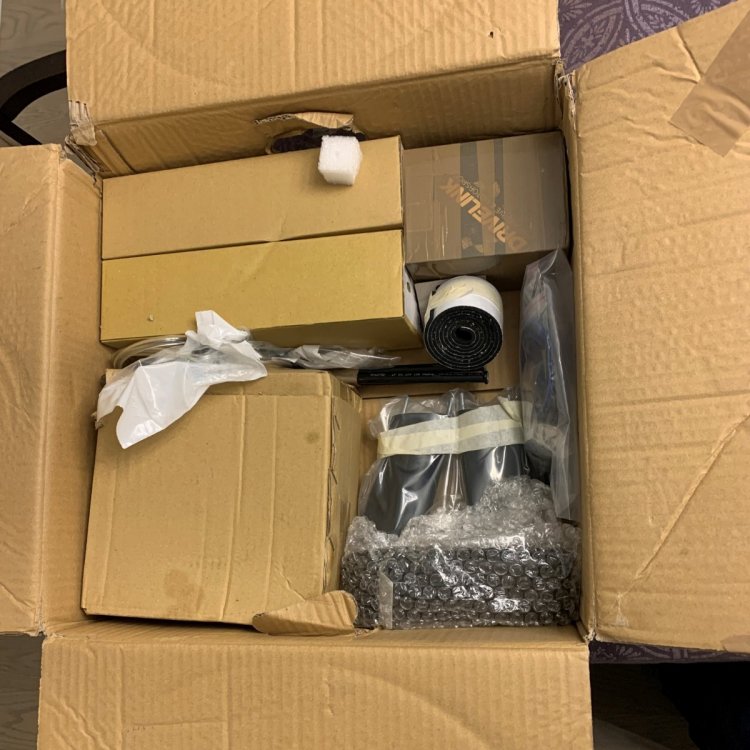

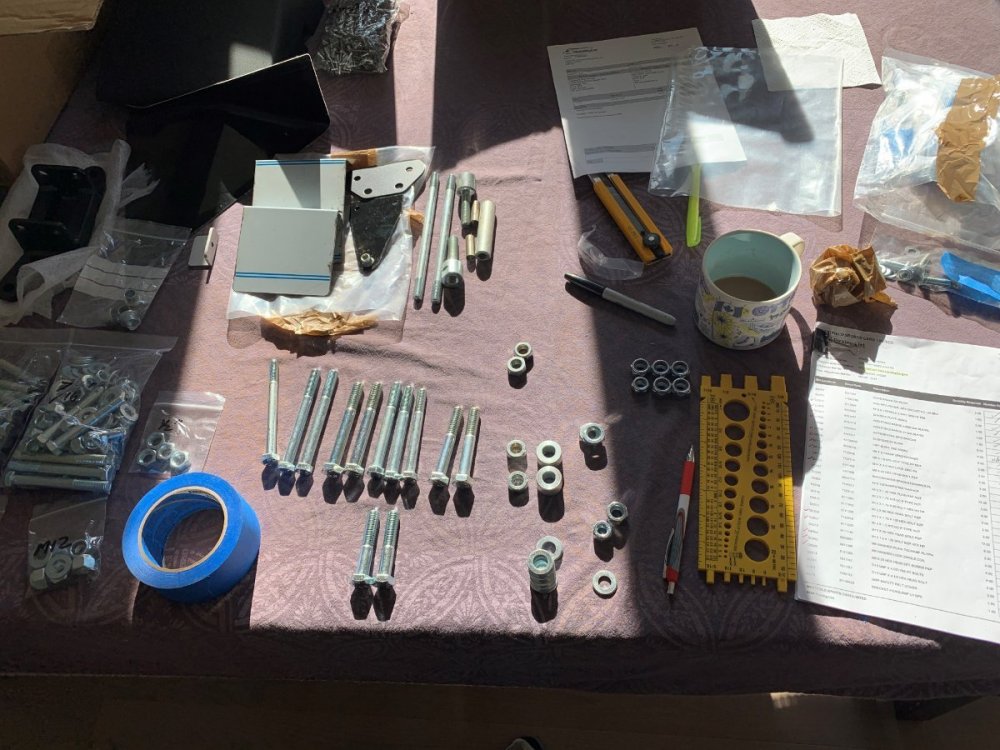

Next, I went through each box one by one, one item at a time checking them off the Bill of Materials as I went.








Link to comment
